Craftsman LTX 1000 Lawn Tractor
The

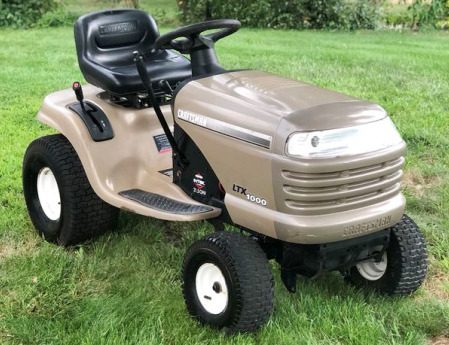

Craftsman LTX1000 is a lawn tractor from LT1000 series. This model was
manufactured by AYP built between 2001 to 2003. The Craftsman LTX1000 tractor is
powered by 29.9 cubic inches (490 cc) Kohler Command CV492 4-cycle single
cylinder air-cooled gasoline engine with a maximum power of 18 Hp (13.4 kW) and
40.1 Nm (28.2 lb-ft) of peak torque at 2400 rev/min, or 40 cubic inches (656 cc)
Briggs and Stratton 407777 four-cycle V-twin OHV vertical-shaft air-cooled
gasoline engine with a max power of 21 Hp (15.7 kW).
The Kohler engine has a carburetor with fixed main jet, diaphragm type
fuel pump, and air cleaner with a replaceable paper element. The Briggs
engine has a float-feed carburetor, pulse type fuel pump, and paper
cartridge air cleaner with a foam pre-cleaner. The Craftsman LTX 1000 is
fitted with two transmission options: Hydro-Gear 314-0510 belt-driven
hydrostatic transmission and Peerless belt-driven gear transmission with
6 forward and 1 reverse gears.
Max. forward speed - 5.5 mph (8.8 kph), maximum reverse speed - 2.4 mph
(3.9 kph). The Craftsman LTX1000 is equipped with 15x6.00-6 front tyres
and 20x10.00-8 rear tyres. The tractor is compatible with a 42"
mid-mount 2-blade mower deck with a cutting height of 1.5-4.0" (38-102
mm) and manual lift system.
| Engine Model |
Kohler Command CV492 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
29.9 (490) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Engine Power, Hp (kW) |
18.0 (13.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
40.1 (28.2) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Diaphragm type, mechanical |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Briggs and Stratton 407777 |
| Engine Type |
4-cycle V-twin OHV vertical-shaft air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.03 (656) |
| Cylinder Bore, in (mm) |
2.97 (75.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
21.0 (15.7) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Magneto Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Valve Lash (Intake), in (mm) |
0.005 (0.127) |
| Valve Lash (Exhaust), in (mm) |
0.005 (0.127) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Hydro-Gear 314-0510 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Transmission Model |
Peerless |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
1.7 (2.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
52 (1300) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
