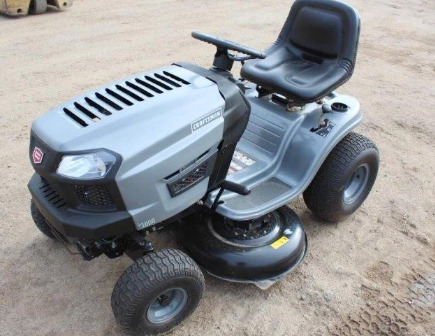

Craftsman T1000 Lawn Tractor
The
Craftsman T1000 is a 2WD lawn tractor. This model was manufactured by MTD built
between 2014 and 2020. The Craftsman T1000 driveline includes a Zongshen 4P90HU
four-cycle single cylinder 2-valve vertical shaft air-cooled gasoline engine and
Shift-on-the-go MTD Transmatic transmission with 7 forward and 1 reverse gears.
A 25.6 cu.in (420 cc) engine has a cylinder bore of 3.54" (90 mm),
piston stroke of 2.60" (66 mm), and rated power of 11.7 hp (8.7 kW).
Max. travel speed (forward and reverse): 5.5 mph (8.8 km/h) / 2.3 mph
(3.7 km/h).
The Craftsman T1000 is equipped with a manual steering system,
mechanical disc brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires.
The wheelbase is 31" (780 mm). The lawn tractor is compatible with a 42"
mid-mount 2-blade mower deck with a cutting height of 1.5-4.0" (37-100
mm) and mechanical lift system.
| Engine Model |
Zongshen 4P90HU |
| Engine Type |
4-cycle single cylinder 2-valve vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
25.6 (420) |
| Cylinder Bore, in (mm) |
3.54 (90.0) |
| Piston Stroke, in (mm) |
2.60 (66.0) |
| Rated Engine Power, hp (kW) |
11.7 (8.7) |
| Rated Engine Speed, rpm |
3300 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash |
| Air Cleaner |
Paper and foam elements |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
F6RTC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2800 |
| Transmission Model |
MTD Transmatic |
| Transmission Type |
Shift-On-The-Go |
| Gearbox Type |
7F/1R |
| Number of Forward Gears |
7 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
31 (780) |
| Length, in (mm) |
70 (1770) |
| Height, in (mm) |
35.5 (900) |
| Overall Width, in (mm) |
37 (935) |
| Weight, lb (kg) |
510 (232) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
5 |
| Drive System |
Belt |
| Lift System |
Mechanical |
