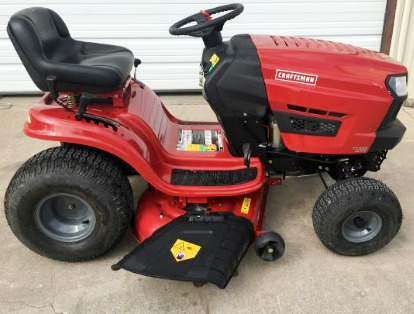

Craftsman T1200 Lawn Tractor
The
Craftsman T1200 two-wheel drive lawn tractor was manufactured by MTD built from
2015 to 2020. The components of Craftsman T1200 powerline system: 25.6 cubic
inches (420 cc) Zongshen 4P90HU 4-cycle single cylinder 2-valve vertical shaft
air-cooled gasoline engine and mechanical CVT transmission with infinite forward
and reverse gears.
The engine has a float carburetor, splash lubrication system, and
electronic ignition system. The maximum travel speed (forward/reverse):
5.5 mph (8.8 km/h) and 2.3 mph (3.7 km/h).
The Craftsman T1200 lawn tractor is equipped with a manual steering
system, mechanical disc brakes, 15x6.00-6 front tires, and 20x8.00-8
rear tires. The wheelbase is 31 inches (780 mm). The tractor is
compatible with a 42" mid-mount 2-blade mower deck with a cutting height
of 1.5-4.0" (37-100 mm) and manual lifting system.
| Engine Model |
Zongshen 4P90HU |
| Engine Type |
4-cycle single cylinder 2-valve vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
25.6 (420) |
| Cylinder Bore, in (mm) |
3.54 (90.0) |
| Piston Stroke, in (mm) |
2.60 (66.0) |
| Rated Engine Power, hp (kW) |
11.7 (8.7) |
| Rated Engine Speed, rpm |
3300 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash |
| Air Cleaner |
Paper and foam elements |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
F6RTC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2800 |
| Transmission Type |
Mechanical CVT |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
31 (780) |
| Length, in (mm) |
70 (1770) |
| Height, in (mm) |
35.5 (900) |
| Overall Width, in (mm) |
37 (935) |
| Weight, lb (kg) |
530 (240) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
5 |
| Drive System |
Belt |
| Lift System |
Mechanical |
