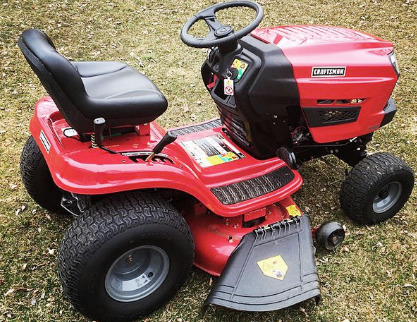

Craftsman T1400 Lawn Tractor
The
Craftsman T1400 is a 2-wheel drive lawn tractor from T1000 series. This model
was manufactured by MTD built between 2014 to 2020. The Craftsman T1400
powerline components: a Briggs and Stratton 4-cycle single cylinder OHV vertical
shaft air-cooled gasoline engine and MTD AutoDrive belt-driven variator
transmission with infinite forward and reverse gears.
A 30.5 cubic inches (500 cc) engine has a cylinder bore of 3.56" (91
mm), a piston stroke of 3.06" (78 mm), and rated power of 17.5 hp (13
kW). The maximum forward speed - 5.5 mph (8.8 kph), max. reverse speed -
2.3 mph (3.7 kph).
The Craftsman T1400 lawn tractor is equipped with a manual steering
system, mechanical disc brakes, 15x6.00-6 front tires, and 20x8.00-8
rear tires. The wheelbase is 31 in (780 mm). The tractor is compatible
with a 42" mid-mount 2-blade mower deck with a cutting height of
1.5-4.0" (37-100 mm) and manual lift system.
| Engine Model |
Briggs and Stratton |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.5 (500) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
17.5 (13.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1750 |
| Compression Ratio |
8.5:1 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2800 |
| Transmission Model |
MTD AutoDrive |
| Transmission Type |
Belt-driven variator |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
31 (780) |
| Length, in (mm) |
70 (1770) |
| Height, in (mm) |
35.5 (900) |
| Overall Width, in (mm) |
37 (935) |
| Weight, lb (kg) |
518 (235) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
5 |
| Drive System |
Belt |
| Lift System |
Mechanical |
