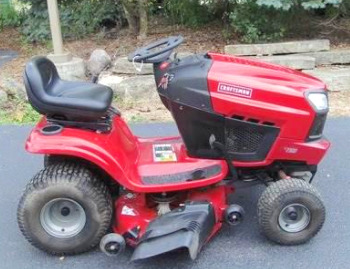

Craftsman T2300 Lawn Tractor
The
Craftsman T2300 lawn tractor was manufactured from 2016 to 2018. The Craftsman
T2300 driveline consists of a 32.9 cu.in (540 cc) Briggs and Stratton 33R877
4-cycle vertical-shaft single cylinder air-cooled gasoline engine with a rated
power of 19 Hp (14.2 kW), and CVT Automatic transmission with infinite forward
and reverse gears.
The engine has a fixed main jet carburetor, integral type fuel pump,
full pressure lubrication with oil filter, and electronic ignition
system. The maximum forward speed - 5.5 mph (8.8 km/h), max. reverse
speed - 2.3 mph (3.7 km/h).
The lawn tractor is equipped with a manual steering system, mechanical
disc brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The wheel
base is 48 inches (1210 mm). The Craftsman T2300 is compatible with a
42" mid-mount 2-blade mower deck with cutting height of 1.0-4.0" (25-100
mm), 6 cut positions, and manual lift system.
| Engine Model |
Briggs and Stratton 33R877 |
| Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
32.9 (540) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
19.0 (14.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.75 (1.70) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
9 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2800 |
| Transmission Type |
CVT Automatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
72.8 (1840) |
| Height, in (mm) |
46 (1160) |
| Overall Width, in (mm) |
45 (1140) |
| Weight, lb (kg) |
407 (185) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.0-4.0 (25-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
