Cub Cadet 1170 Lawn Tractor
The

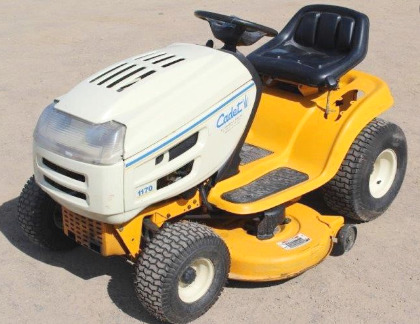

Cub Cadet 1170 lawn tractor was manufactured from 2000 to 2002. The Cub Cadet
1170 powerline components: Briggs and Stratton 407777 Intek 4-stroke 2-cylinder
vertical shaft air-cooled gasoline engine and continuously variable transmission
(CVT) with infinite forward and reverse gears.
A 40 cu.in (655 cc) engine has a cylinder bore of 2.97" (75 mm), piston
stroke of 2.89" (73 mm), and maximum power of 17.5 hp (13 kW). Max.
forward speed - 5.2 mph (8.4 km/h), maximum reverse speed - 2.3 mph (3.7
km/h).
The Cub Cadet 1170 was equipped with a manual steering system, wet disc
brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The wheelbase
is 45.5 inches (1150 mm). The tractor is compatible with a 42" mid-mount
2-blade mower deck with cutting height of 1.0-4.0" (25-102 mm) and
mechanical lift, 42" mid-mount two-stage snowblower, and 46" front-mount
blade.
| Engine Model |
Briggs and Stratton 407777 Intek |
| Engine Type |
4-stroke, vertical, air-cooled, twin gasoline |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
40.0 (0.655) |
| Engine Bore, in (mm) |
2.97 (75.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
17.5 (13.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1200 |
| Fuel System |
Carburetor |
| Ignition System |
Electronic |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.101-0.152) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.101-0.152) |
| Armature Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Point Gap, in (mm) |
0.020 (0.508) |
| Cylinder Bore (Standard) Diameter, in (mm) |
2.969-2.970 (75.41-75.44) |
| Crankpin Journal Diameter, in (mm) |
1.4965 (38.01) |
| Crankshaft Journal Diameter (PTO Side), in (mm) |
1.623 (41.22) |
| Crankshaft Journal Diameter (Magneto Side), in (mm) |
1.376 (34.813) |
| Camshaft Journals, in (mm) |
0.624-0.625 (15.85-15.87) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 13A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Continuously Variable Transmission (CVT) |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
0.63 (0.60) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Wet disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Turning Radius, in (mm) |
20 (510) |
| Weight, lb (kg) |
490 (225) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Style |
Stamped |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1-4 (25-100) |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount, 2-Stage |
| Clearing Width, in (mm) |
42 (1060) |
| Number of Belts |
2 |
| Lift System |
Mechanical |
| Weight, lb (kg) |
280 (127) |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical/Electric |
| Angle |
Manual/Electric |
| Weight, lb (kg) |
70 (32) |
