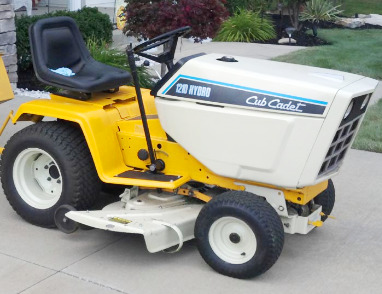

Cub Cadet 1210 Garden Tractor
The
Cub Cadet 1210 Hydro garden tractor was manufactured from 1985 to 1989. The Cub
Cadet 1210 powertrain system components: a 29.1 cu.in (476 cc) Kohler M12S
4-stroke single cylinder air-cooled gasoline engine with a maximum power of 12
hp (9 kW), and sundstrand hydrostatic transmission with infinite forward and
reverse gears.
The engine has a side draft carburetor with adjustable jet, forced-air
cooling system, and magneto or battery ignition system. Max. travel
speed (forward/reverse): 7.5 mph (12.1 km/h) and 4 mph (6.4 km/h).
The garden tractor is equipped with a manual steering system, dual disc
brakes, 16x6.50-8 front tires, and 23x10.50-12 rear tires. The wheel
base is 44 in (1100 mm). The Cub Cadet 1210 is compatible with the
following attachments: 38", 44", 50" mid-mount 3-blade mower decks with
cutting height of 1.0-4.0" (25-102 mm) and mechanical lift system.
| Engine Model |
Kohler M12S |
| Engine Type |
4-stroke, air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
29.1 (0.476) |
| Engine Bore, in (mm) |
3.38 (85.7) |
| Engine Stroke, in (mm) |
3.25 (82.6) |
| Maximum Engine Power, hp (kW) |
12.0 (9.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200 |
| Compression |
6.6:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler |
| Carburetor Type |
Side draft, adjustable jet |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.025 (0.63) |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.1) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Type |
Hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Maximum Forward Speed, mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dual disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Front Tread Width, in (mm) |
29 (730) |
| Rear Tread Width, in (mm) |
27 (680) |
| Wheelbase, in (mm) |
44 (1100) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
37.8 (950) |
| Ground Clearance, in (mm) |
6 (153) |
| Weight, lb (kg) |
585 (266) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1-4 (25-100) |
| Drive Type |
Belt |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Cutting Height, in (mm) |
1-4 (25-100) |
| Drive Type |
Belt |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1270) |
| Cutting Height, in (mm) |
1-4 (25-100) |
| Drive Type |
Belt |
| Lift System |
Manual |
