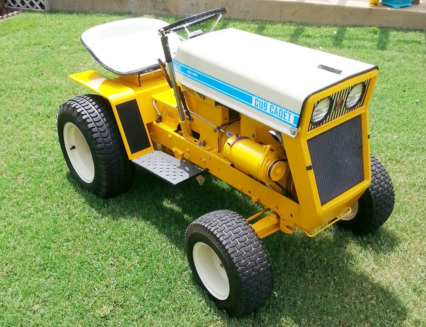

Cub Cadet 125 Garden Tractor
The
Cub Cadet 125 is a garden tractor from 1X4/1X5 series. This model was
manufactured between 1967 and 1969. The Cub Cadet 125 powerline system
components: a 29.1 cu.in (476 cc) Kohler K301AS 4-stroke single cylinder
air-cooled gasoline engine and Sundstrand shaft driven hydrostatic transmission
with infinite forward and reverse gears.
The engine has a cylinder bore of 3.39" (86 mm), piston stroke of 3.25"
(83 mm), and rated power of 12 hp (8.9 kW). The maximum travel speed
(forward/reverse): 8 mph (12.9 km/h) and 4 mph (6.4 km/h).
The Cub Cadet 125 was equipped with a manual steering system, drum
brakes, 4.8x4.00-8 front tires, and 23x8.50-12 rear tires. The wheelbase
is 43" (1090 mm). Compatible attachments for the tractor: 38", 42", or
48" mid-mount 3-blade mower decks with cutting height of 1.0-4.0 in
(20-100 mm), 42" front blade, and 42" front-mount snow blower with
manual lift system.
| Engine Model |
Kohler K301AS |
| Engine Type |
4-stroke, air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
29.1 (0.476) |
| Engine Bore, in (mm) |
3.39 (86.0) |
| Engine Stroke, in (mm) |
3.25 (83.0) |
| Rated Engine Power, hp (kW) |
12.0 (8.9) |
| Rated Engine Speed, rpm |
3600 |
| Compression |
6.0:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.026 (0.65) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
2.26 (2.21) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator, 15A |
| Starter Type |
Starter |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.9) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Drum |
| Front Tire Size |
4.8x4.0-8 |
| Rear Tire Size |
23x8.5-12 |
| Front Tread Width, in (mm) |
27 (680) |
| Rear Tread Width, in (mm) |
27 (680) |
| Wheelbase, in (mm) |
43 (1090) |
| Length, in (mm) |
64 (1620) |
| Height, in (mm) |
39.7 (1010) |
| Overall Width, in (mm) |
36 (910) |
| Ground Clearance, in (mm) |
6 (150) |
| Weight, lb (kg) |
650 (295) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Cutting Height, in (mm) |
1-4 (20-100) |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
36 (910) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
