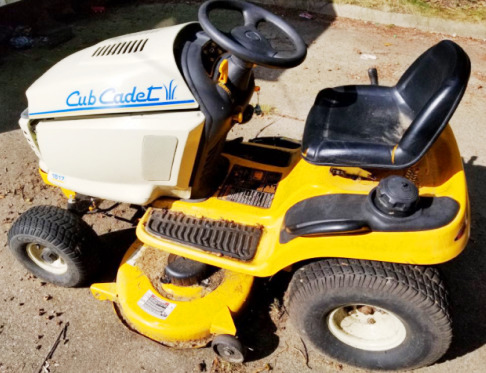

Cub Cadet 1517 Lawn Tractor
The
Cub Cadet 1517 is a 1500 series lawn tractor. This model was manufactured from
2002 to 2003. The Cub Cadet 1517 driveline system components: Kohler Command
CV490S 4-cycle single cylinder vertical shaft air-cooled gasoline engine and
hydrostatic transmission with infinite forward and reverse gears.
A 29.9 cubic inches (490 cc) engine has a cylinder bore of 3.60" (90
mm), piston stroke of 3.03" (77 mm), and rated power of 17 hp (12.7 kW).
The maximum travel speed (forward and reverse): 5.2 mph (8.4 km/h) / 2.3
mph (3.8 km/h).
The lawn tractor was equipped with a manual steering system, dry disc
brakes, 15x6.00-6 front tires, and 20x9.00-8 rear tires. The wheel base
is 47 in (1190 mm). The Cub Cadet 1517 is compatible with a 42"
mid-mount 3-blade mower deck with cutting height of 1.5-4.0" (37-100 mm)
and six cut positions, 42" front-mount 2-stage snowblower with manual
lifting, and 46" front blade.
| Engine Model |
Kohler Command CV490S |
| Engine Type |
Gasoline, vertical shaft, 4-cycle air-cooled |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
29.9 (0.490) |
| Engine Bore, in (mm) |
3.60 (90.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Rated Engine Power, hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-2400 |
| Compression |
8.5:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Walbro/Nikki |
| Carburetor Type |
Float fixed main jet |
| Governor |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Air Cleaner |
Replaceable paper element |
| Ignition System |
Electronic magneto |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.4) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
3.5 (3.2) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
15x6.0-6 |
| Rear Tire Size |
20x9.0-8 |
| Front Tread Width, in (mm) |
29 (730) |
| Rear Tread Width, in (mm) |
27 (680) |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
68.5 (1730) |
| Height, in (mm) |
41 (1035) |
| Overall Width, in (mm) |
37 (935) |
| Ground Clearance, in (mm) |
6 (152) |
| Weight, lb (kg) |
505 (228) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (30-100) |
| Lift System |
Manual |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1160) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
