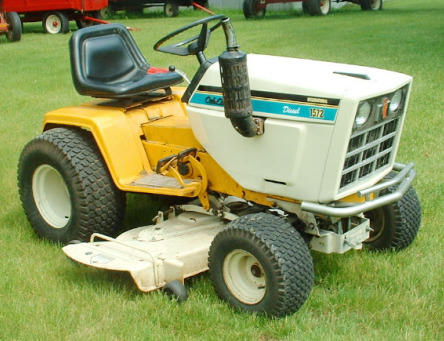

Cub Cadet 1572 Garden Tractor
The
Cub Cadet 1572 is a 2-wheel drive diesel garden tractor. This model was
manufactured from 1987 to 1988. The components of Cub Cadet 1572 driveline
system: Kubota D600-B 4-stroke 3-cylinder liquid-cooled naturally aspirated
diesel engine and Sundstrand shaft driven hydrostatic transmission with infinite
forward and reverse gears.
A 37 cubic inches (0.6L) engine has a cylinder bore of 2.52" (64 mm),
piston stroke of 2.45" (62 mm), rated power of 15 hp (11.2 kW), and 34.6
Nm (25.2 lb-ft) of max torque at 2600 rpm.
The maximum forward speed - 8.6 mph (13.9 km/h), max reverse speed - 4.3
mph (6.8 km/h). The Cub Cadet 1572 is equipped with a power steering
system, dry disc brakes, 18x8.50-10 front tires, and 26x12.00-12 rear
tires. The wheelbase is 51.6" (1305 mm). The tractor is compatible with
the following attachments: 50" or 60" mid-mount 3-blade mower decks with
hydraulic lift system, 54" front blade, and 45" front-mount 2-stage
snowblower.
| Engine Model |
Kubota D600-B |
| Engine Type |
4-stroke, 3-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
37.0 (0.606) |
| Aspiration |
Naturally aspirated |
| Engine Bore, in (mm) |
2.52 (64.0) |
| Engine Stroke, in (mm) |
2.45 (62.0) |
| Rated Engine Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
900 |
| Maximum Torque, Nm (ft-lb) |
34.6 (25.2) |
| Torque Speed, rpm |
2600 |
| Fuel System |
Bosch fuel injection |
| Intake Valve Clearance, in (mm) |
0.006 (0.15) |
| Exhaust Valve Clearance, in (mm) |
0.006 (0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.2) |
| Oil Capacity, qts (L) |
3.0 (2.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 12A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
2000 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
8.0 (7.7) |
| Maximum Forward Speed, mph (kph) |
8.6 (13.9) |
| Maximum Reverse Speed, mph (kph) |
4.3 (6.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power Steering |
| Brakes Type |
Dry disc |
| Front Tire Size |
18x8.5-10 |
| Rear Tire Size |
26x12.0-12 |
| Front Tread Width, in (mm) |
33 (835) |
| Rear Tread Width, in (mm) |
31.5 (800) |
| Wheelbase, in (mm) |
51.6 (1305) |
| Length, in (mm) |
78.5 (1990) |
| Height, in (mm) |
47.5 (1200) |
| Overall Width, in (mm) |
43.5 (1100) |
| Ground Clearance, in (mm) |
7.6 (190) |
| Turning Radius, in (mm) |
87 (2200) |
| Weight, lb (kg) |
850 (387) |
| Mower Deck Model Number |
190-359 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Overall Width, in (mm) |
59 (1490) |
| Cutting Height, in (mm) |
1.5-4.5 (40-115) |
| Lift System |
Hydraulic |
| Mower Deck Model Number |
190-374 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Overall Width, in (mm) |
75 (1900) |
| Cutting Height, in (mm) |
1.5-4.5 (40-115) |
| Lift System |
Hydraulic |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
45 (1140) |
| Drive Type |
2 Belts |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
54 (1365) |
| Height, in (mm) |
18 (450) |
| Lift System |
Hydraulic |
| Angle |
Hydraulic |
