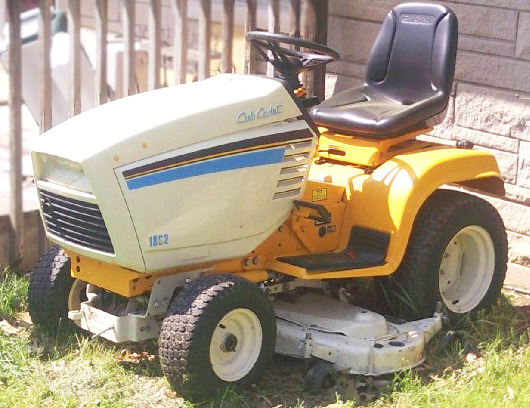

Cub Cadet 1862 Garden Tractor
The
Cub Cadet 1862 garden tractor was manufactured from 1990 to 1992. The Cub Cadet
1862 powertrain system components: a 42.2 cu.in (691 cc) Kohler Magnum M18
4-cycle twin-cylinder air-cooled gasoline engine with a rated power of 15 hp
(11.2 kW), and shaft-driven hydrostatic transmission with infinite forward and
reverse gears.
The engine has a carburetor with adjustable main jet or fixed jet, full
pressure lubrication system, and air cleaner with replaceable paper
element. The maximum forward speed - 7.5 mph (12.1 km/h), maximum
reverse speed - 4 mph (6.4 km/h).
The Cub Cadet 1862 was equipped with a hydrostatic power steering, dual
disc brakes, 16x6.50-8 front tires, and 23x10.50-12 rear tires. The
wheel base is 45.5" (1150 mm). Compatible attachments for the garden
tractor: 42", 44", 46" or 54" mid-mount 3-blade mower decks with cutting
height of 1.0-4.5" (25-112 mm) and hydraulic lift system, 45"
front-mount two-stage snowblower, and 54" front blade.
Engine Model |
Kohler Magnum M18 |
Engine Type |
Gasoline, 4-cycle Twin-cylinder air-cooled |
Number of Cylinders |
2 |
Displacement, cu in (L) |
42.2 (0.691) |
Engine Bore, in (mm) |
3.13 (79.0) |
Engine Stroke, in (mm) |
2.75 (70.0) |
Rated Engine Power, hp (kW) |
15.0 (11.2) |
Rated Engine Speed, rpm |
3600 |
Idle Speed, rpm |
1200 |
Compression |
6:1 |
Fuel System Type |
Carburetor |
Carburetor Type |
Adjustable main jet or fixed jet |
Fuel Pump |
Mechanical |
Lubrication System Type |
Full-Pressure |
Oil filter |
Full-flow type |
Air Cleaner |
Replaceable, paper element |
Ignition System |
Battery |
Spark Plug Type, in (mm) |
Champion RV17YC |
Spark Plug Gap, in (mm) |
0.035 (0.89) |
Module Air Gap, in (mm) |
0.008-0.012 (0.2-0.3) |
Intake Valve Clearance, in (mm) |
0.003-0.006 (0.08-0.16) |
Exhaust Valve Clearance, in (mm) |
0.011-0.014 (0.28-0.35) |
Fuel Tank Capacity, gal (L) |
5.0 (18.9) |
Oil Capacity, qts (L) |
2.0 (1.9) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Charging Rating, Amps |
15 |
Electrical Ground |
Negative |
Starter Type |
Electric |
Battery Voltage, Volts |
12 |
Front PTO Operational Type |
Independent |
Front PTO Clutch |
Electric |
Front PTO Speed, rpm |
3600 |
Transmission Type |
Shaft-driven hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Oil Capacity, qt (L) |
7.0 (6.6) |
Maximum Forward Speed, mph (kph) |
7.5 (12.1) |
Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Dual disc |
Front Tire Size |
16x6.50-8 |
Rear Tire Size |
23x10.5-12 |
Front Tread, in (mm) |
29 (730) |
Rear Tread, in (mm) |
27 (680) |
Wheelbase, in (mm) |
45.5 (1150) |
Length, in (mm) |
72 (1820) |
Height, in (mm) |
43 (1090) |
Overall Width, in (mm) |
37.8 (950) |
Ground Clearance, in (mm) |
6.0 (150) |
Weight (without Mover Deck), lb (kg) |
630 (286) |
Weight (with 50" Mover Deck), lb (kg) |
847 (385) |
Mower Deck Type |
Mid-mount |
Model Number |
190-357-100 |
Deck Style |
Stamped |
Number of Blades |
2 |
Cutting Width, in (mm) |
38 (960) |
Cutting Height, in (mm) |
1.5-4.0 (38-101) |
Lift System |
Hydraulic |
Mower Deck Type |
Mid-mount |
Model Number |
190-358-100 |
Deck Style |
Stamped |
Number of Blades |
3 |
Cutting Width, in (mm) |
44 (1110) |
Cutting Height, in (mm) |
1.5-4.5 (38-113) |
Lift System |
Hydraulic |
Mower Deck Type |
Mid-mount |
Model Number |
190-336-100 |
Deck Style |
Stamped |
Number of Blades |
3 |
Cutting Width, in (mm) |
46 (1160) |
Cutting Height, in (mm) |
1.5-4.5 (38-113) |
Lift System |
Hydraulic |
Mower Deck Type |
Mid-mount |
Model Number |
190-359-100 |
Deck Style |
Stamped |
Number of Blades |
3 |
Cutting Width, in (mm) |
50 (1260) |
Cutting Height, in (mm) |
1.5-4.5 (38-113) |
Lift System |
Hydraulic |
Snowblower Type |
Front-mount, 2-stage |
Model Number |
190-450-100 |
Clearing Width, in (mm) |
45 (1140) |
Drive Type |
Belt |
Number of Belts |
1 |
Lift System |
Manual |
Blade Type |
Front-mount |
Model Number |
190-375-100 |
Width, in (mm) |
42 (1060) |
Lift System |
Manual/Electric |
Angle |
Manual/Electric |
Blade Type |
Front-mount |
Model Number |
190-376-100 |
Width, in (mm) |
54 (1365) |
Lift System |
Manual/Electric |
Angle |
Manual/Electric |
