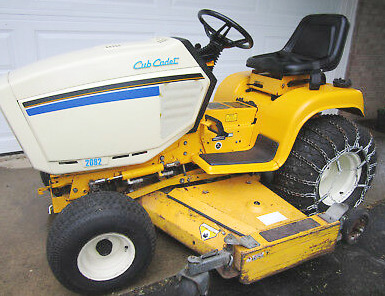

Cub Cadet 2082 Garden Tractor
The
Cub Cadet 2082 garden tractor was manufactured from 1990 to 1993. The Cub Cadet
2082 tractor is powered by 47 cu.in (770 cc) Kohler Magnum M20S 4-cycle
2-cylinder air-cooled gasoline engine with maximum output power of 20 hp (15 kW)
at 3600 rev/min.
The Cub Cadet 2082 is equipped with Sundstrand shaft driven hydrostatic
transmission with infinite forward and reverse gears. The engine has a
carburetor with fixed main jet or adjustable main jet, full pressure
lubrication system, and electronic ignition system.
The maximum travel speed (forward/reverse): 7.5 mph (12.1 kph) and 4 mph
(6.4 kph). The Cub Cadet 2082 fitted with 18x8.50-10 front tires and
26x12.00-12 rear tires. The wheel base is 51.6 in (1305 mm). Compatible
attachments for the tractor: a 46" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0" (40-100 mm), 50", 54" or 60" mid-mount
3-blade mower decks with cutting height of 1.5-4.5" (40-115 mm) and
hydraulic lift system, 45" mid-mount 2-stage snowblower, and 54" front
blade.
| Engine Model |
Kohler Magnum M20S |
| Engine Type |
Gasoline, 4-cycle 2-cylinder air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
47.0 (0.77) |
| Engine Bore, in (mm) |
3.13 (79.0) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
20.0 (15.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200 |
| Fuel System |
Carburetor |
| Governor |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RBL15Y |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.035 (0.89) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Intake Valve Clearance, in (mm) |
0.003-0.006 (0.076-0.152) |
| Exhaust Valve Clearance, in (mm) |
0.011-0.014 (0.278-0.354) |
| Fuel Tank Capacity, gal (L) |
5.0 (19.0) |
| Oil Capacity, qts (L) |
2.8 (2.6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
2600 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Maximum Forward Speed, mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power Steering |
| Brakes Type |
Dual disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Front Tread Width, in (mm) |
33 (835) |
| Rear Tread Width, in (mm) |
31.5 (800) |
| Wheelbase, in (mm) |
51.6 (1305) |
| Length, in (mm) |
78.5 (1990) |
| Height, in (mm) |
47.5 (1200) |
| Overall Width, in (mm) |
43.5 (1100) |
| Ground Clearance, in (mm) |
7.6 (190) |
| Turning Radius, in (mm) |
87 (2200) |
| Weight, lb (kg) |
730 (330) |
| Mower Deck Model Number |
190-336 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (40-100) |
| Lift System |
Hydraulic |
| Mower Deck Model Number |
190-359 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Overall Width, in (mm) |
59 (1490) |
| Cutting Height, in (mm) |
1.5-4.5 (40-115) |
| Lift System |
Hydraulic |
| Mower Deck Model Number |
190-374 |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Overall Width, in (mm) |
75 (1900) |
| Cutting Height, in (mm) |
1.5-4.5 (40-115) |
| Lift System |
Hydraulic |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
45 (1140) |
| Drive Type |
2 Belts |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
54 (1365) |
| Height, in (mm) |
18 (450) |
| Lift System |
Hydraulic |
| Angle |
Hydraulic |
