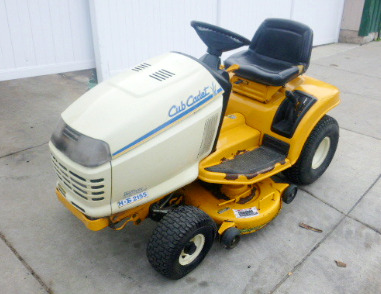

Cub Cadet HDS 2155 Lawn Tractor
The
Cub Cadet HDS 2155 is a 2000-series lawn tractor. This model was manufactured
from 1996 to 1999. The components of Cub Cadet 2155 powerline system: Kohler
CH15S four-stroke single cylinder gasoline engine and BDU-10L shaft-driven
hydrostatic transmission. A 26 cubic inches engine output is 15 hp (11.2 kW),
and max. torque is 34.3 Nm (25.3 lb-ft) at 2400 rpm.
Max. forward speed - 5.5
mph (8.8 km/h), maximum reverse speed - 3.0 mph (4.8 km/h). The Cub Cadet 2155
was equipped with a manual steering system, internal expanding brakes, 15x6.50-6
front tires, and 20x9.00-8 rear tires.
The wheelbase is 47 inches (1190 mm). The
tractor is compatible with the following attachments: a 42" mid-mount mower deck
with cutting height of 1.5-4.25 inches (40-108 mm), 40" two-stage front-mount
snow blower, and 42" front blade with mechanical lift system.
| Engine Model |
Kohler CH15S |
| Engine Type |
4-stroke single cylinder gasoline |
| Number of Cylinders |
1 |
| Displacement, cu in (L) |
26.0 (0.426) |
| Engine Bore, in (mm) |
3.54 (90.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Maximum Horse Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
34.3 (25.3) |
| Torque Speed, rpm |
2400 |
| Fast Idle Speed, rpm |
3350 |
| Slow Idle Speed, rpm |
1400 |
| Compression Ratio |
8.5:1 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Ignition Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance (Cold), in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance (Cold), in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
BDU-10L |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
6.0 (5.8) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Internal expanding |
| Front Tire Size |
15x6.50-6 |
| Rear Tire Size |
20x9.00-8 |
| Front Tread Width, in (mm) |
30 (760) |
| Rear Tread Width, in (mm) |
27.5 (690) |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
45 (1140) |
| Ground Clearance, in (mm) |
6 (152) |
| Turning Radius, in (mm) |
27 (685) |
| Weight, lb (kg) |
571 (258) |
| Mower Deck Model Number |
42B |
| Mower Deck Type |
Mid-mount |
| Deck Style |
Stamped |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.25 (40-108) |
| Lift System |
Mechanical |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
40 (1010) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
190 (85) |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
95 (43) |
