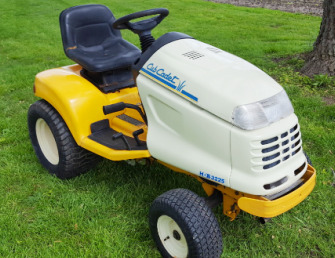

Cub Cadet HDS 3225 Lawn Tractor
The
Cub Cadet HDS 3225 is a 3000-series garden tractor. This model was manufactured from
1998 to 1999. The components of Cub Cadet 3225 driveline system: Kohler Command
CH22S 4-cycle V-Twin cylinder air-cooled gasoline engine and hydrostatic
transmission with infinite forward and reverse gears.
A 41 cubic inches (674 cc) engine has a cylinder bore of 3.15" (80 mm),
piston stroke of 2.64" (67 mm), and rated power of 22 hp (16.4 kW). The
maximum travel speed (forward/reverse): 8 mph (12.8 km/h) and 4 mph (6.4
km/h). The garden tractor is equipped with 16x7.50-8 front tires and
24x10.5-12 rear tires.
The wheelbase is 49.5 in (1250 mm). The Cub Cadet 3225 is compatible
with the following attachments: 48", 54", 60" mid-mount 3-blade mower
decks with hydraulic lift system, 54" front-mount blade, and 45"
front-mount two-stage snow blower.
| Engine Model |
Kohler Command CH22S |
| Engine Type |
Gasoline, 4-cycle V-Twin air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
41.0 (674) |
| Engine Bore, in (mm) |
3.15 (80.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1450 |
| Maximum Torque, Nm (ft-lbs) |
48.9 (36.2) |
| Torque Speed, rpm |
2400 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Keihin |
| Carburetor Type |
One-Barrel, fixed main jet |
| Fuel Pump Type |
Pulse/mechanical |
| Governor Type |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Ignition Type |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Valve Lash |
Hydraulic |
| Fuel Tank Capacity, gal (L) |
4.5 (17.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Flywheel alternator |
| Charging Rating, Amps |
16 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery CCA |
435 |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Oil Capacity, qt (L) |
4.5 (4.2) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.8) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
External disc |
| Front Tire Size |
16x7.5-8 |
| Rear Tire Size |
24x10.5-12 |
| Wheelbase, in (mm) |
49.5 (1250) |
| Length, in (mm) |
74 (1870) |
| Height, in (mm) |
43.6 (1100) |
| Overall Width, in (mm) |
42 (1060) |
| Ground Clearance, in (mm) |
6.0 (150) |
| Weight (without Mover Deck), lb (kg) |
803 (365) |
| Weight (with 48-in Mover Deck), lb (kg) |
1068 (486) |
| Mower Deck Type |
Mid-mount |
| Model Number |
190-289-100 |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Cutting Height, in (mm) |
1.5-4.5 (38-113) |
| Lift System |
Hydraulic |
| Weight, lb (kg) |
265 (120) |
| Mower Deck Type |
Mid-mount |
| Model Number |
190-290-100 |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1370) |
| Cutting Height, in (mm) |
1.5-4.5 (38-113) |
| Lift System |
Hydraulic |
| Weight, lb (kg) |
268 (122) |
| Mower Deck Type |
Mid-mount |
| Model Number |
190-291-100 |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Cutting Height, in (mm) |
1.5-4.5 (38-113) |
| Lift System |
Hydraulic |
| Weight, lb (kg) |
290 (132) |
| Snowblower Type |
Front-mount, 2-stage |
| Model Number |
190-353-100 |
| Clearing Width, in (mm) |
45 (1140) |
| Drive Type |
Belt |
| Number of Belts |
1 |
| Lift System |
Manual/Electric |
| Weight, lb (kg) |
215 (98) |
| Blade Type |
Front-mount |
| Model Number |
190-352-100 |
| Width, in (mm) |
54 (1370) |
| Lift System |
Manual/Electric |
| Angle |
Manual/Electric |
| Weight, lb (kg) |
110 (50) |
