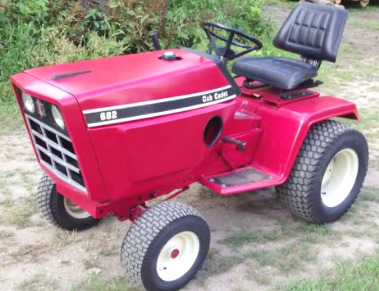

Cub Cadet 682 Garden Tractor
The
Cub Cadet 682 is a 2-wheel drive garden tractor from IH-82 series. This model
was manufactured between 1979 and 1985. The Cub Cadet 682 driveline includes a
42.2 cu.in (691 cc) Kohler KT17 4-stroke 2-cylinder air-cooled gasoline engine
and Sundstrand shaft driven hydrostatic transmission with infinite forward and
reverse gears.
The engine has a side draft carburetor with adjustable jet, mechanical
fuel pump, and battery ignition system. The maximum forward speed - 8
mph (12.9 kph), maximum reverse speed - 4 mph (6.4 kph).
The Cub Cadet 682 was equipped with a manual steering system, integral
wet disc brakes, 15x6.50-8 front tires, and 23x10.50-12 rear tires. The
wheelbase is 44" (1110 mm). The tractor is compatible with the following
attachments: a 38" mid-mount 2-blade mower deck, 44" or 50" mid-mount
3-blade mower decks with cutting height of 1.0-4.0 in (25-102 mm), 36"
or 42" mid-mount snowblower with manual lift, and 42" or 54" front
blade.
| Engine Model |
Kohler KT17 |
| Engine Type |
4-stroke, 2-cylinder air-cooled gasoline |
| Number of Cylinders |
Twin |
| Displacement, cu in (L) |
42.2 (0.691) |
| Engine Bore, in (mm) |
3.13 (79.0) |
| Engine Stroke, in (mm) |
2.75 (70.0) |
| Maximum Engine Power, hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Type |
Side draft adjustable jet |
| Valve Clearance (Intake), in (mm) |
0.003-0.006 (0.076-0.152) |
| Valve Clearance (Exhaust), in (mm) |
0.011-0.014 (0.278-0.354) |
| Spark Plug Type |
Champion RBL15Y |
| Spark Plug Gap, in (mm) |
0.020 (0.51) |
| Camshaft End Play, in (mm) |
0.003-0.013 (0.076-0.329) |
| Connecting Rod Small End Inside Diameter, in (mm) |
0.6255-0.6258 (15.825-15.833) |
| Crankshaft Sleeve Bearing Journal, in (mm) |
1.7412-1.7422 (44.052-44.078) |
| Crankpin, in (mm) |
1.3738-1.3733 (34.757-34.744) |
| Crankshaft End Play, in (mm) |
0.002-0.014 (0.051-0.354) |
| Ring End Gap, in (mm) |
010-0.020 (0.25-0.51) |
| Max. Ring Side Clearance, in (mm) |
0.006 (0.152) |
| Piston Pin Outside Diameter, in (mm) |
0.6247-0.6249 (15.805-15.810) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.2) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1x32Ah |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Shaft driven hydrostatic |
| Transmission Model |
Sundstrand |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.9) |
| Maximum Reverse Speed, mph (kph) |
4.0 (6.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Integral wet disc |
| Front Tire Size |
16x6.5-8 |
| Rear Tire Size |
23x10.5-12 |
| Front Tread Width, in (mm) |
29 (730) |
| Rear Tread Width, in (mm) |
27 (680) |
| Wheelbase, in (mm) |
44 (1110) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
37.3 (945) |
| Ground Clearance, in (mm) |
6 (152) |
| Turning Radius, in (mm) |
81.6 (2065) |
| Weight, lb (kg) |
660 (298) |
| Mower Deck Model |
38C |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Lift System |
Mechanical |
| Mower Deck Model |
44C |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Lift System |
Mechanical |
| Mower Deck Model |
50C |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Lift System |
Mechanical |
