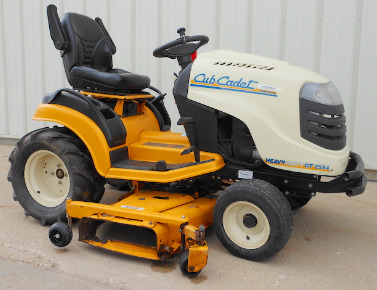

Cub Cadet GT-2554 Garden Tractor
The
Cub Cadet GT2554 is a two-wheel drive garden tractor from 2500-series. This
model was manufactured between 2005-2010. The components of Cub Cadet GT-2554
driveline system: 41.1 cu.in (0.67 L) Kohler Command CH23S 2-cylinder air-cooled
gasoline engine with a maximum power of 23 Hp (17.4 kW), and Hydro-Gear BDU-10
hydrostatic transmission.
The engine has a mechanical fuel pump, full pressure lubrication system,
and electronic ignition system. The maximum travel speed
(forward/reverse): 5.8 mph (9.3 km/h) and 3.5 mph (5.6 km/h).
The Cub Cadet GT2554 was equipped with a manual steering system, dry
disc brakes, 16x6.50-8 front tires, and 23x9.50-12 rear tires. The
wheelbase is 47" (1190 mm). Compatible attachments for the Cub Cadet
GT2554 garden tractor: a 54" mid-mount 3-blade mower deck with cutting
height of 1.5-4.0 in (38-101 mm) and manual spring-assisted lift, 42"
front-mount blade, or 42" front-mount two-stage snow blower.
| Engine Model |
Kohler Command CH23S |
| Engine Type |
Gasoline, 4-cycle 2-cylinder air-cooled |
| Number of Cylinders |
V-Twin |
| Displacement, cu in (L) |
41.1 (0.674) |
| Engine Bore, in (mm) |
3.15 (80.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Maximum Engine Power, hp (kW) |
23.0 (17.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400 |
| Maximum Torque, Nm (ft-lbs) |
51.2 (37.9) |
| Torque Speed, rpm |
2400 |
| Fuel Pump |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Ignition System |
Electronic |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.41) |
| Fuel Tank Capacity, gal (L) |
2.3 (8.7) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Type |
Hydrostatic |
| Transmission Model |
Hydro-Gear BDU-10 |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Maximum Forward Speed, mph (kph) |
5.8 (9.3) |
| Maximum Reverse Speed, mph (kph) |
3.5 (5.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
16x6.5-8 |
| Rear Tire Size |
23x9.5-12 |
| Front Tread Width, in (mm) |
30 (760) |
| Rear Tread Width, in (mm) |
27.5 (695) |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
72 (1820) |
| Height, in (mm) |
42 (1060) |
| Overall Width (w/o Mower Deck), in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
6 (150) |
| Weight, lb (kg) |
696 (317) |
| Mower Deck Type |
Mid-mount |
| Style Of Deck |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1365) |
| Cutting Height, in (mm) |
1.5-4.0 (38-100) |
| Lift System |
Manual |
| Weight, lb (kg) |
170 (77) |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Manual |
| Angle |
Manual |
| Weight, lb (kg) |
95 (43) |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
1 Belt |
| Lift System |
Manual |
| Weight, lb (kg) |
180 (82) |
