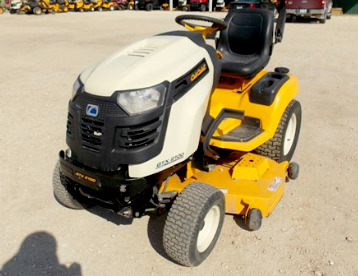

Cub Cadet GTX2100 Garden Tractor
The
Cub Cadet GTX 2100 garden tractor was manufactured between 2011 and 2014. The
Cub Cadet GTX2100 tractor is equipped with a Kohler Command
CH680 four-cycle V-Twin cylinder air-cooled gasoline engine and Hydro-Gear
BDU-1 shaft-driven hydrostatic transmission with infinite forward and reverse
gears.
A 41.1 cubic inches engine has a cylinder bore of 3.15" (80 mm), piston
stroke of 2.64" (67 mm), and rated power of 23 hp (17.4 kW) with a maximum
torque of 51.2 Nm (37.9 lb-ft) at 2400 rpm. The maximum forward speed - 6.5 mph
(10.4 kph), max. reverse speed - 3.5 mph (5.6 kph).
The tractor is fitted with
16x6.50-8 front tires and 23x9.5-12 rear tires. The wheel base is 50.6 in (1280
mm). The Cub Cadet GTX-2100 garden tractor can be equipped with the following
attachments: a 42" mid-mount 2-blade mower deck, 48", 50", 54" mid-mount 3-blade
mower decks with electric lift, 46" front-mount blade, and 48" front-mount
snow blower.
| Engine Model |
Kohler Command CH680 |
| Engine Type |
Gasoline, 4-cycle V-Twin-cylinder air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
41.1 (0.674) |
| Engine Bore, in (mm) |
3.15 (80.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Maximum Engine Power, hp (kW) |
23.0 (17.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1250 |
| Maximum Torque, Nm (ft-lbs) |
51.2 (37.9) |
| Torque Speed, rpm |
2400 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Mechanical |
| Lubrication System Type |
Full-Pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Ignition System |
Electronic |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.41) |
| Valve Lash |
Hydraulic |
| Fuel Tank Capacity, gal (L) |
4.5 (17.0) |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Flywheel alternator |
| Charging Rating, Amps |
25 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery CCA |
275 |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Hydro-Gear BDU-10 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Pump Displacement, cu.in (cc) |
0.61 (10.0) |
| Motor Displacement, cu.in (L) |
0.61 (10.0) |
| Rated Input Speed, rpm |
3600 |
| Maximum Input Speed, rpm |
3800 |
| Oil Capacity, qt (L) |
5.5 (5.2) |
| Maximum Forward Speed, mph (kph) |
6.5 (10.4) |
| Maximum Reverse Speed, mph (kph) |
3.5 (5.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Electronic power steering |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
16x6.5-8 |
| Rear Tire Size |
23x9.5-12 |
| Wheelbase, in (mm) |
50.6 (1280) |
| Length, in (mm) |
76 (1930) |
| Height, in (mm) |
47.5 (1200) |
| Overall Width, in (mm) |
43 (1085) |
| Ground Clearance, in (mm) |
6.0 (150) |
| Weight (without Mover Deck), lb (kg) |
720 (327) |
| Mower Deck Type |
Mid-mount |
| Model Number |
19A40012100 |
| Deck Style |
Stamped |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
10 |
| Lift System |
Electric |
| Weight, lb (kg) |
200 (91) |
| Mower Deck Type |
Mid-mount |
| Model Number |
19A40013100 |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1270) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
10 |
| Lift System |
Electric |
| Weight, lb (kg) |
220 (100) |
| Mower Deck Type |
Mid-mount |
| Model Number |
19A40014100 |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1370) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Lift System |
Electric |
| Weight, lb (kg) |
240 (109) |
| Snowblower Type |
Front-mount, 2-stage |
| Model Number |
19A40019100 |
| Clearing Width, in (mm) |
44 (1115) |
| Drive Type |
Belt |
| Number of Belts |
2 |
| Lift System |
Electric |
| Weight, lb (kg) |
328 (150) |
| Blade Type |
Front-mount |
| Model Number |
19A40022100 |
| Width, in (mm) |
46 (1165) |
| Lift System |
Manual |
| Angle |
Manual |
| Weight, lb (kg) |
70 (32) |
