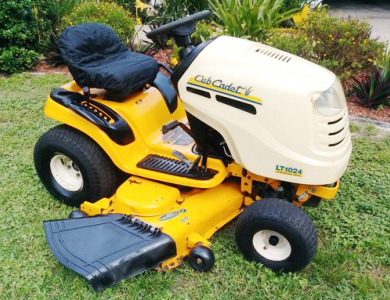

Cub Cadet LT-1024 Lawn Tractor
The
Cub Cadet LT1024 is a 2WD lawn tractor from LT-1000 series This model was
manufactured between 2004 and 2017. The Cub Cadet LT1024 driveline consists of a
44.2 cu.in (724 cc) Briggs and Stratton 446777 4-stroke 2-cylinder air-cooled
gasoline engine and Hydro-Gear 311-0510 belt-driven hydrostatic transmission.
The Briggs engine has output power of 24 hp (18 kW) and max. torque of
44.1 Nm (32.5 lb-ft) at 2400 rev/min. The maximum forward speed - 5.2
mph (8.4 km/h), maximum reverse speed - 2.3 mph (3.7 km/h).
The Cub Cadet LT1024 is equipped with a manual steering system, dry disc
brakes, 15x6.0-6 front tires, and 20x9.00-8 rear tires. The wheel base
is 47 inches (1190 mm). The Cub Cadet LT1024 lawn tractor is compatible
with a 50" mid-mount 3-blade mower deck with cutting height of 1.5-4.0"
(38-100 mm), 42" front-mount 2-stage snow blower, and 46" front blade
with mechanical lifting system.
| Engine Model |
Briggs and Stratton 446777 |
| Engine Type |
4-stroke, 2-cylinder air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
44.2 (0.724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200-3650 |
| Maximum Torque, Nm (lb-ft) |
44.1 (32.5) |
| Torque Speed, rpm |
2400 |
| Compression |
8.5:1 |
| Fuel System |
Carburetor |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Armature Air Gap, in (mm) 0.008 |
0.012 (0.20-0.30) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 16A |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery Rating |
270 CCA |
| Electric Ground |
Negative |
| PTO Location |
Front |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| Transmission Model |
Hydro-Gear 311-0510 |
| Transmission Type |
Belt-driven hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Overall Transaxle Reduction |
22.15:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
15x6.0-6 |
| Rear Tire Size |
20x9.0-8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
54 (1370) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
18 (465) |
| Weight, lb (kg) |
525 (235) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1.5-4 (38-100) |
| Snowblower Model |
190-673 |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Model |
190-674 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
