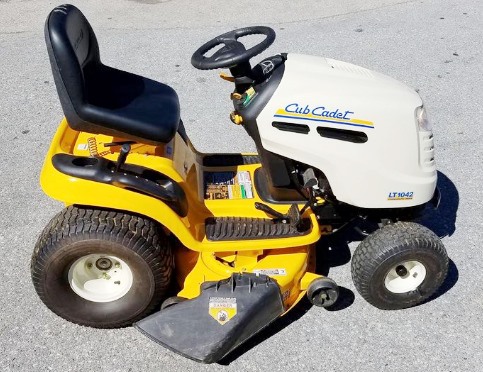

Cub Cadet LT1042 Lawn Tractor
The
Cub Cadet LT1042 is a LT-1000 series lawn tractor. This model was manufactured
between 2005 and 2008. The Cub Cadet LT1042 driveline includes a Kohler Courage
SV590 single-cylinder vertical shaft air-cooled gasoline engine and Hydro-Gear
0510 hydrostatic transmission.
The maximum forward speed - 5.2 mph (8.4 km/h), a maximum reverse speed
- 2.3 mph (3.7 km/h). The 36.4 cubic inches engine has a cylinder bore
of 3.7" (94 mm), piston stroke of 3.38" (86 mm), and rated power of 19
hp (14.1 kW). The maximum torque is 42.3 Nm (31.2 lb-ft) at 2600
rev/min.
The tractor is equipped with 15x6.00-6 front tyres and 20x10.00-8 rear
tyres. The wheelbase is 46 inches (1160 mm). Compatible attachments for
the Cub Cadet LT1042 lawn tractor: a 42" mid-mount mower deck, 42" two
stage front-mount snow blower, and 46" blade with a clearing height of
16" (405 mm).
| Engine Model |
Kohler Courage SV590 |
| Engine Type |
Gasoline, single-cylinder vertical shaft air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
36.4 (0.597) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
19.0 (14.1) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
42.3 (31.2) |
| Torque Speed, rpm |
2600 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion QC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.2) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 16A |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery Rating |
190 CCA |
| Electric Ground |
Negative |
| PTO Location |
Front |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| Transmission Model |
Hydro-Gear 0510 |
| Transmission Type |
Hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Overall Transaxle Reduction |
22.2:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.1) |
| Oil Capacity, qts (L) |
2.40 (2.25) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
46 (1160) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
45 (1140) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
18 (465) |
| Weight, lb (kg) |
500 (225) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4 (30-100) |
| Cut Positions |
6 |
| Lift System |
Mechanical |
| Snowblower Model |
190-673 |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Model |
190-674 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
