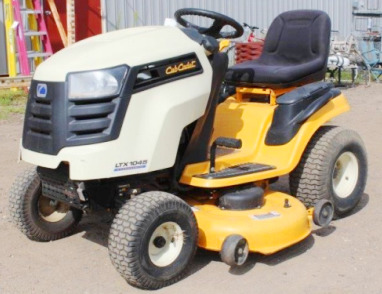

Cub Cadet LTX 1045 Lawn Tractor
The
Cub Cadet LTX1045 is a LTX-1000 series lawn tractor. This model was manufactured
from 2009 to 2014. The components of Cub Cadet LTX 1045 driveline system: a 36.4
cubic inches (597 cc) Kohler Courage SV600 single-cylinder vertical shaft
air-cooled gasoline engine with a rated power of 20 hp (14.9 kW), and Tuff Torq
belt-driven hydrostatic transmission.
The engine has a fixed main jet carburetor, pulse type fuel pump, and
full pressure lubrication system with full-flow oil filter. The maximum
travel speed (forward/reverse): 5.2 mph (8.4 kph) and 2.3 mph (3.7 kph).
The Cub Cadet LTX1045 was equipped with a manual steering system, disc
brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The wheelbase
is 47.5" (1200 mm). The tractor is compatible with the following
attachments: a 46" mid-mount 2-blade mower deck with cutting height of
1.5-4 inches (38-102 mm) and manual lift, 42" front-mount double-stage
snow blower, and 46" front-mount blade with clearing height of 16" (400
mm).
| Engine Model |
Kohler Courage SV600 |
| Engine Type |
Gasoline, single-cylinder, vertical shaft air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
36.4 (0.597) |
| Engine Bore, mm (in) |
3.70 (94.0) |
| Engine Stroke, mm (in) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
43.2 (31.5) |
| Torque Speed, rpm |
2600 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Spark Plug Type |
Champion RC12YC or QC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.3) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Manual lever |
| Transmission Model |
Tuff Torq |
| Transmission Type |
Belt-driven hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.0 |
| Rear Tire Size |
20x8.0 |
| Wheelbase, in (mm) |
47.5 (1200) |
| Length, in (mm) |
69 (1750) |
| Height, in (mm) |
38 (960) |
| Overall Width, in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
5 (125) |
| Weight, lb (kg) |
510 (232) |
| Mower Deck Model Number |
42B |
| Mower Deck Type |
Mid-mount |
| Deck Style |
Stamped/Timed |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (40-100) |
| Lift System |
Mechanical |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1165) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
