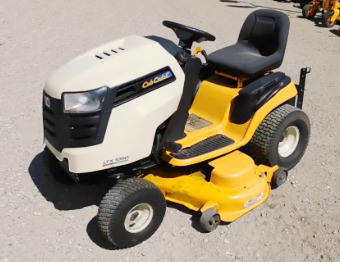

Cub Cadet LTX-1050 Lawn Tractor
The
Cub Cadet LTX1050 is a LTX 1000 series a lawn tractor. This model was
manufactured from 2009 to 2014.
The Cub Cadet LTX-1050 powertrain system components: Kohler Courage
SV715 2-cylinder vertical shaft air-cooled gasoline engine and Tuff Torq
belt-driven hydrostatic transmission with infinite forward and reverse
gears. A 42.2 cu.in (725 cc) engine has a cylinder bore of 3.27" (83
mm), piston stroke of 2.64" (67 mm), and rated power of 22 hp (16.4 kW).
The engine has a Walbro fixed main jet carburetor, pulse type fuel pump,
and full pressure lubrication system with a full-flow oil filter. Max.
travel speed (forward/reverse): 5.2 mph (8.4 kph) and 2.3 mph (3.7 kph).
The Cub Cadet LTX1050 fitted with 15x6.00-6 standart front tires and
20x10.0-8 rear tires. The wheelbase is 47.5 inches (1200 mm). The
tractor can be equipped with the following attachments: a 50" mid-mount
3-blade mower deck, 42" front-mount double stage snowblower, and 46"
front blade.
| Engine Model |
Kohler Courage SV715 |
| Engine Type |
Gasoline, 2-cylinder, vertical shaft air-cooled |
| Number of Cylinders |
Two |
| Displacement, cu.in (L) |
42.2 (0.725) |
| Engine Bore, mm (in) |
3.27 (83.0) |
| Engine Stroke, mm (in) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
58.3 (43.1) |
| Torque Speed, rpm |
2800 |
| Compression |
9.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Intake Valve Clearance, in (mm) |
0.005 (0.127) |
| Exhaust Valve Clearance, in (mm) |
0.005 (0.127) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.3) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Model |
Tuff Torq |
| Transmission Type |
Belt-driven hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual sector and pinion |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.0 |
| Rear Tire Size |
20x10.0 |
| Wheelbase, in (mm) |
47.5 (1200) |
| Length, in (mm) |
69 (1750) |
| Height, in (mm) |
38 (960) |
| Overall Width, in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
5 (125) |
| Turning Radius, in (mm) |
12 (303) |
| Weight, lb (kg) |
513 (235) |
| Mower Deck Model Number |
50B |
| Mower Deck Type |
Mid-mount |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1.5-4.0 (40-100) |
| Lift System |
Mechanical |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1165) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
