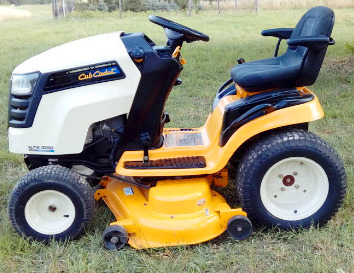

Cub Cadet SLTX 1050 Lawn Tractor
The
Cub Cadet SLTX 1050 lawn tractor was manufactured between 2009 and 2014. The Cub
Cadet SLTX1050 driveline includes a Kohler Courage SV730 four-cycle 2-cylinder
vertical shaft air-cooled gasoline engine and hydrostatic transmission with
infinite forward and reverse gears.
A 44.2 cu.in (725 cc) engine has a maximum power of 25 hp (18.6 kW) and
max torque of 59.6 Nm (44.1 lb-ft) at 2800 rev/min. The maximum travel
speed (forward/reverse): 5.2 mph (8.4 km/h) and 2.3 mph (3.7 km/h). The
lawn tractor was equipped with 16x6.5-6 front tires and 22x9.50-8 rear
tires.
The wheel base is 47.5 inches (1200 mm). Compatible attachments for the
Cub Cadet SLTX1050: a 50" mid-mount 3-blade mower deck with cutting
height of 1.5-4.0 inches (40-100 mm), 46" front-mount blade, and 42"
front-mount two-stage snowblower with mechanical lifting system.
| Engine Model |
Kohler Courage SV730 |
| Engine Type |
Gasoline, 2-cylinder, vertical shaft air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu.in (L) |
44.2 (0.725) |
| Engine Bore, mm (in) |
3.27 (83.0) |
| Engine Stroke, mm (in) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
25.0 (18.6) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
59.6 (44.1) |
| Torque Speed, rpm |
2800 |
| Idle Speed, rpm |
1600 |
| Compression |
9.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Nikki or Keihin |
| Carburetor Type |
One-Barrel, fixed main jet |
| Fuel Pump |
Pulse type |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Intake Valve Clearance, in (mm) |
0.005 (0.127) |
| Exhaust Valve Clearance, in (mm) |
0.005 (0.127) |
| Fuel Tank Capacity, gal (L) |
3.3 (12.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Type |
Hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual sector and pinion |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.5 |
| Rear Tire Size |
22x9.5 |
| Wheelbase, in (mm) |
47.5 (1200) |
| Length, in (mm) |
69 (1750) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
54 (1370) |
| Ground Clearance, in (mm) |
5 (125) |
| Turning Radius, in (mm) |
12 (305) |
| Weight, lb (kg) |
548 (249) |
| Mower Deck Model Number |
50B |
| Mower Deck Type |
Mid-mount |
| Deck Style |
Stamped |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1.5-4.0 (40-100) |
| Lift System |
Mechanical |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1165) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
