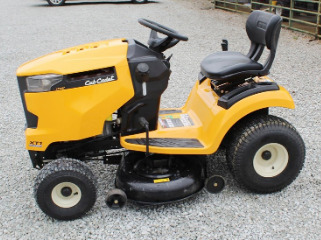

Cub Cadet XT1 LT42 Lawn Tractor
The
Cub Cadet XT1 LT42 is a XT1 Enduro series lawn tractor. This model was
manufactured from 2015 to 2020. The Cub Cadet XT1 LT42 driveline includes a
Kohler Courage SV541 vertical single-cylinder air-cooled gasoline engine and
Tuff Torq K46 belt-driven hydrostatic transmission with a speed foot-control and
cruise control.
The maximum forward speed - 5.5 mph (8.8 kph), a max. reverse speed -
3.1 mph (5.0 kph). A 36.4 cu.in (597 cc) engine power is 18 Hp (13.4
kW), and maximum torque is 43.5 Nm (32.1 lb-ft) at 2600 rpm.
The Cub Cadet XT1 LT42 is equipped with 15x6.00-6 front tyres and
20x8.00-8 rear tyres. The wheelbase is 47" (1190 mm). The tractor can be
equipped with the following attachments: a 42-in mid-mount 2-blade mower
deck with cutting height of 1.0-4.0 in (25-102 mm), 42-in front-mount
2-stage snowblower, and 46-in front blade with a manual lift system.
| Engine Model |
Kohler Courage SV541 |
| Engine Type |
Vertical single-cylinder air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
36.4 (0.597) |
| Engine Bore, mm (in) |
3.70 (94.0) |
| Engine Stroke, mm (in) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
18.0 (13.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
43.5 (32.1) |
| Compression |
9.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance, in (mm) |
0.005 (0.127) |
| Exhaust Valve Clearance, in (mm) |
0.007 (0.178) |
| Piston Outside Diameter, in (mm) |
3.6980-3.6985 (93.93-93.94) |
| Piston Ring Groove Side Clearance, in (mm) |
0.0016 (0.04) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 12A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Manual |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Reduction Ratio |
21.53:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.05) |
| Differential |
Automotive Type Bevel Gears |
| Speed Control |
Foot-controlled |
| Cruise Control |
Standard |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
3.1 (5.0) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Heavy-duty |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Wet Disc, internal |
| Front Tire Size |
15x6 |
| Rear Tire Size |
20x8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width, in (mm) |
50 (1265) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
410 (185) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Style |
Stamped |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.0-4.0 (25-100) |
| Cut Positions |
12 |
| Overall Width, in (mm) |
50 (1265) |
| Anti-Scalping Wheels (Front) |
2, ball |
| Anti-Scalping Wheels (Rear) |
2, narrow |
| Deck Spindles |
0.75 in (19 mm) with steel cap and triple lip sealed |
| Lift System |
Mechanical with spring assisted |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1165) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
