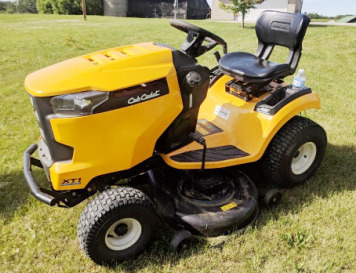

Cub Cadet XT1 LT46 Lawn Tractor
The
Cub Cadet XT1 LT46 is a two-wheel drive lawn tractor from XT1 Enduro series.
This model was manufactured between 2015 and 2020. The Cub Cadet XT1 LT46
powerline components: Kohler KT725 twin-cylinder air-cooled vertical shaft
gasoline engine and Tuff Torq belt-driven hydrostatic transmission.
A 44.2 cubic inches engine has a cylinder bore of 3.27" (83 mm), piston
stroke of 2.64" (67 mm), rated power of 22 hp (16.4 kW), and maximum
torque of 54.8 Nm (40.4 lb-ft) at 2500 rev/min. The maximum forward
speed - 5.5 mph (8.8 km/h), max. reverse speed - 3.1 mph (5 km/h).
The Cub Cadet XT1 LT46 is equipped with a manual steering, internal wet
disc brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The
wheelbase is 47 in (1190 mm). The tractor is compatible with a 46"
mid-mount 2-blade mower deck with mechanical spring-assist lift, 46"
front blade, or 42" front-mount three-stage snowblower.
| Engine Model |
Kohler KT725 (7000 Series) |
| Engine Type |
Gasoline, 4-cycle, twin-cylinder, air-cooled, vertical shaft |
| Number of Cylinders |
2 |
| Displacement, cu.in (L) |
44.2 (0.725) |
| Engine Bore, mm (in) |
3.27 (83.0) |
| Engine Stroke, mm (in) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
54.8 (40.4) |
| Compression |
9.1:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Keihin or Walbro |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 12A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| PTO Location |
Front |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Transmission Model |
Tuff Torq |
| Transmission Type |
Belt-driven hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Reduction Ratio |
21.53:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.05) |
| Differential |
Automotive Type Bevel Gears |
| Speed Control |
Foot-controlled |
| Cruise Control |
Standard |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
3.1 (5.0) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Heavy-duty |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Wet Disc, internal |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width, in (mm) |
50 (1265) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
421 (190) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Style |
Stamped |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.0-4.0 (25-100) |
| Cut Positions |
12 |
| Overall Width, in (mm) |
54 (1365) |
| Anti-Scalping Wheels (Front) |
2, ball |
| Anti-Scalping Wheels (Rear) |
2, narrow |
| Deck Spindles |
0.75 in (19 mm) with steel cap and triple lip sealed |
| Lift System |
Mechanical with spring assisted |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Drive Type |
2 Belts |
| Lift System |
Mechanical |
| Weight, lb (kg) |
277 (126) |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1165) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
| Angle |
Manual |
| Weight, lb (kg) |
82 (38) |
