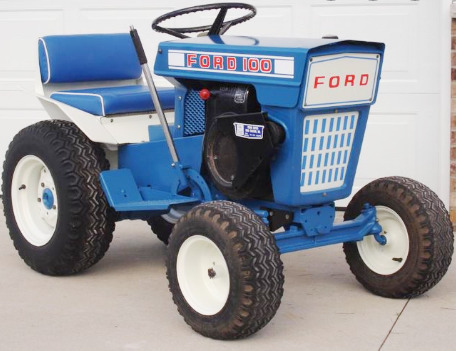

Ford 100 Garden Tractor
The
Ford 100 garden tractor was manufactured by Jacobsen built from 1966 to 1971.
The Ford 100 tractor is powered by 23.9 cu.in (391 cc) Kohler K241 4-stroke
single-cylinder air-cooled gasoline engine with a max output power of 10 hp (7.5
kW).
The Ford 100 is fitted with two transmission options: belt-driven gear
transmission with 4 forward and 1 reverse gears, and hydrostatic
transmission with infinite forward and reverse gears. The maximum
forward speed - 7.2 mph (11.5 kph), max. reverse speed - 3.2 mph (5.1
kph).
The garden tractor was equipped with a manual steering system, band
brakes, 16x5.50-8 front tires, and 23x8.50-12 rear tires. The wheelbase
is 43" (1090 mm). The Ford 100 is compatible with 36" or 42" mid-mount
2-blade mower decks with manual lift, 48" mid-mount 3-blade mower deck,
36" front-mount snowblower, and 42" front-mount blade.
| Engine Model |
Kohler K241 |
| Engine Type |
4-stroke, air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
23.9 (0.391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Maximum Engine Power, hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Compression |
7.0:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.5 (2.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
4F/1R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
1 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
7.2 (11.5) |
| Maximum Reverse Speed, mph (kph) |
3.2 (5.1) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
7.0 (11.3) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x5.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
43 (1090) |
| Length, in (mm) |
61 (1540) |
| Height, in (mm) |
39 (990) |
| Overall Width, in (mm) |
34 (860) |
| Ground Clearance, in (mm) |
6.5 (165) |
| Weight (Gear Transmission), lb (kg) |
720 (325) |
| Weight (Hydro Transmission), lb (kg) |
772 (350) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
