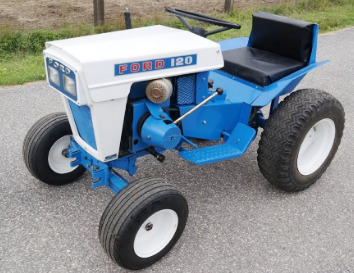

Ford 120 Garden Tractor
The
Ford 120 garden tractor was manufactured by Jacobsen built from 1967 to 1971.
The Ford 120 is powered by Kohler K301 four-stroke single cylinder air-cooled
gasoline engine with a rated power of 12.0 hp (8.9 kilowatt) at 3600 rev/min.
The Ford 120 garden tractor fitted with two transmission options:
belt-driven gear transmission with 4 forward and 1 reverse gears, and
belt-driven hydrostatic transmission. Max. travel speed (forward and
reverse): 7.2 mph (11.5 kph) / 3.2 mph (5.1 kph).
The engine has a
Kohler adjustable main jet or Walbro fixed main jet carburetors, splash
lubrication, and forced-air cooling system.
The Ford 120 fitted with 16x5.50-8 front tires and 20x8.50-12 rear
tires. The wheelbase is 43" (1090 mm). The tractor is compatible with
36", 42" or 48" mid-mount mower decks with manual lift, 42" front blade,
and 36" front-mount single-stage snow blower.
| Engine Model |
Kohler K301 |
| Engine Type |
4-stroke air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
29.1 (0.476) |
| Engine Bore, in (mm) |
3.38 (86.0) |
| Engine Stroke, in (mm) |
3.25 (83.0) |
| Maximum Engine Power, hp (kW) |
12.0 (8.9) |
| Rated Engine Speed, rpm |
3600 |
| Compression |
6.0:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.026 (0.65) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.5 (2.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
4F/1R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
1 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
7.2 (11.5) |
| Maximum Reverse Speed, mph (kph) |
3.2 (5.1) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
7.0 (11.3) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x5.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
43 (1090) |
| Length, in (mm) |
61 (1540) |
| Height, in (mm) |
39 (990) |
| Overall Width, in (mm) |
34 (860) |
| Ground Clearance, in (mm) |
6.5 (165) |
| Weight (Gear Transmission), lb (kg) |
725 (327) |
| Weight (Hydro Transmission), lb (kg) |
776 (352) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
