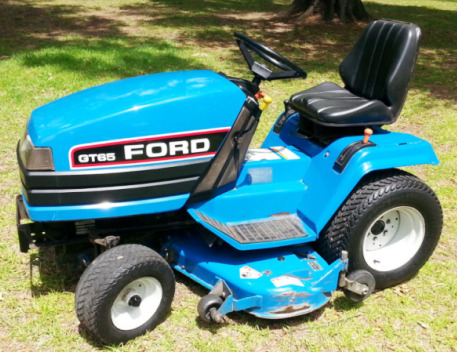

Ford GT65 Garden Tractor
The
Ford GT-65 is a GT-series garden tractor. This model was manufactured by
Shibaura built from 1992 to 1997. The components of Ford GT-65 powerline system:
Shibaura E643 three-cylinder horizontal-shaft water-cooled diesel engine and
2-range belt-driven hydrostatic transmission with infinite forward and reverse
gears.
A 37.7 cubic inches engine has a cylinder bore of 2.52" (64 mm), piston
stroke of 2.52" (64 mm), and rated power of 14 hp (10.4 kW). Max.
forward speed - 8.0 mph (12.9 kph), max. reverse speed - 3.7 mph (6
kph).
The Ford GT65 is equipped with a manual or power steering system, disc
brakes, 16x6.50-8 front tires and 23x10.5-12 rear tires. The wheelbase
is 49.8" (1260 mm). Compatible attachments for the tractor: 44", 48",
60" mid-mount 3-blade mower decks with a cutting height of 1.0-4.0"
(25-102 mm), a 46" front blade, and 42" front-mount 1-stage snow blower
with a mechanical or hydraulic lift system.
| Engine Model |
Shibaura E643 |
| Engine Type |
Water-cooled 4-cycle horizontal-shaft diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
37.7 (0.617) |
| Engine Bore, in (mm) |
2.52 (64.0) |
| Engine Stroke, in (mm) |
2.52 (64.0) |
| Maximum Engine Power, hp (kW) |
14.0 (10.4) |
| Rated Engine Speed, rpm |
3200 |
| Fuel System |
Injection pump |
| Air Cleaner |
Dry type |
| Pre-Heating |
Glow plugs |
| Fuel Tank Capacity, gal (L) |
4.2 (16.0) |
| Oil Capacity, qts (L) |
3.2 (3.0) |
| Coolant Capacity, qts (L) |
3.5 (3.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Manual idler pulley |
| Front PTO Speed, rpm |
3200 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Clutch |
Manual idler pulley |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-ranges) |
| Number of Reverse Gears |
Infinite (2-ranges) |
| Oil Capacity, qts (L) |
9.1 (8.6) |
| Maximum Forward Speed, mph (kph) |
8.0 (12.9) |
| Maximum Reverse Speed, mph (kph) |
3.7 (6.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual or Power |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
49.8 (1260) |
| Length, in (mm) |
74.5 (1890) |
| Height, in (mm) |
45 (1140) |
| Overall Width, in (mm) |
39 (990) |
| Ground Clearance, in (mm) |
6.2 (155) |
| Weight, lb (kg) |
1050 (475) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-drive |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-drive |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Drive Belt |
Shaft-drive |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Hydraulic/Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
46 (1160) |
| Lift System |
Hydraulic/Manual |
| Angle |
Hydraulic/Manual |
