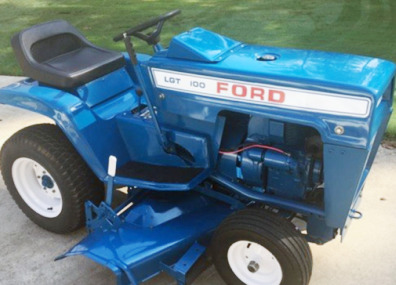

Ford LGT100 Garden Tractor
The
Ford LGT 100 garden tractor was manufactured by Jacobsen built from 1972 to
1983. The components of Ford LGT100 driveline system: Kohler K241S 4-stroke
single cylinder air-cooled gasoline engine and belt-driven gear transmission
with 4 forward and 1 reverse gears.
A 23.9 cu.in (0.39 L) engine has a cylinder bore of 3.25" (82.5 mm),
piston stroke of 2.88" (73 mm), and rated power of 10 hp (7.5 kW). Max.
forward speed - 6.5 mph (10.5 km/h), maximum reverse speed - 2.9 mph
(4.7 km/h). Tractor is fitted with 16x6.50-8 front tires and 23x8.50-12
rear tires.
The wheelbase is 46 inches (1160 mm). Compatible attachments for the
Ford LGT 100 lawn tractor: 42", 50" mid-mount 3-blade mower decks with a
cutting height of 1.5-4.5 inches (38-115 mm), 42" front-mount
single-stage or two-stage stage snow blower, 48" front blade, and front
end loader with lift capacity to full height of 350 lbs (158 kg) at
bucket pin.
| Engine Model |
Kohler K241S |
| Engine Type |
4-stroke, air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu in (L) |
23.9 (0.391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Maximum Engine Power, hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Compression |
7.0:1 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
4F/1R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
1 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
6.5 (10.5) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Integral mechanical band |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
46 (1160) |
| Length, in (mm) |
71.5 (1810) |
| Height, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
41 (1040) |
| Ground Clearance (Front Mounts), in (mm) |
5.8 (145) |
| Ground Clearance (Frame), in (mm) |
14 (355) |
| Weight, lb (kg) |
755 (342) |
| Maximum Lift Height (to pin), in (mm) |
67 (1700) |
| Clearance, Dumped Bucket, in (mm) |
51 (1290) |
| Reach At Ground, in (mm) |
20 (510) |
| Lift to Full Height (at pin), lb (kg) |
350 (160) |
| Bucket Width (Std), in (mm) |
38 (960) |
| Bucket Width (Opt), in (mm) |
48 (1215) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.5 (38-115) |
| Overall Width, in (mm) |
52 (1315) |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1270) |
| Cutting Height, in (mm) |
1.5-4.5 (38-115) |
| Overall Width, in (mm) |
60 (1520) |
| Lift System |
Manual |
| Snowblower Type |
Front-mount, single-stage/two-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
44 (1110) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift Height, in (mm) |
7 (177) |
| Cutting Depth, in (mm) |
2 (51) |
| Lift System |
Manual |
| Angle |
Manual |
