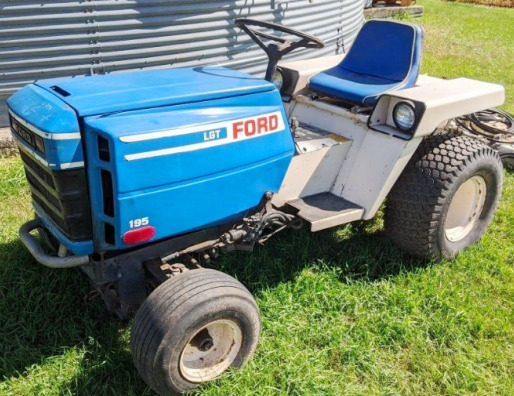

Ford LGT195 Garden Tractor
The
Ford LGT 195 is a 2WD garden tractor from LGT-series. This model was
manufactured by Jacobsen built between 1978 and 1980. The Ford LGT195 powerline
system components: Kohler K532QS four-cycle two-cylinder air-cooled gasoline
engine and 2-range Eaton 11 shaft-driven hydrostatic transmission with infinite
forward and reverse gears.
A 53.7 cubic inches (0.88 L) engine has a cylinder bore of 3.38" (86
mm), piston stroke of 3.00" (76 mm), and rated power of 19.9 hp (14.8
kW). The maximum travel speed (forward/reverse): 9.6 mph (15.4 km/h) and
4.8 mph (7.7 km/h).
The Ford LGT 195 was equipped with a power assist steering system,
mechanical drum brakes, 18x8.50-8 or 20x8.00-10 front tires, and
26x12.00-12 or 29x12.00-15 rear tires. The wheel base is 56" (1420 mm).
The tractor is compatible with the following attachments: a 60"
mid-mount 3-blade mower deck with cutting height of 1.0-4.0" (25-102 mm)
and hydraulic lifting, 48" front-mount single-stage snowblower, and 54"
front-mount blade with hydraulic angle.
| Engine Model |
Kohler K532QS |
| Engine Type |
4-stroke, air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu in (L) |
53.7 (0.879) |
| Engine Bore, in (mm) |
3.38 (86.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Rated Engine Power, hp (kW) |
19.9 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1000 |
| Fuel System |
Carburetor |
| Carburetor Type |
Downdraft or sidedraft |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.020 (0.43-0.51) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.026 (0.65) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
3.5 (3.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Solid state regulator rectifier |
| Charging Rating, Amps |
15 |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/2000 |
| Transmission Model |
Eaton 11 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-ranges) |
| Number of Reverse Gears |
Infinite (2-ranges) |
| Maximum Forward Speed (Low Range), mph (kph) |
5.2 (8.4) |
| Maximum Forward Speed (High Range), mph (kph) |
9.6 (15.4) |
| Maximum Reverse Speed (Low Range), mph (kph) |
2.6 (4.2) |
| Maximum Reverse Speed (High Range), mph (kph) |
4.8 (7.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power assist |
| Brakes Type |
Mechanical drum |
| Front Tire Size (Std) |
18x8.5-8 |
| Rear Tire Size (Std) |
26x12.0-12 |
| Front Tire Size (Opt) |
20x8.0-10 |
| Rear Tire Size (Opt) |
29x12.0-15 |
| Wheelbase, in (mm) |
56 (1420) |
| Length, in (mm) |
84 (2130) |
| Height, in (mm) |
46 (1160) |
| Overall Width, in (mm) |
49 (1240) |
| Ground Clearance, in (mm) |
10 (255) |
| Weight, lb (kg) |
1125 (510) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Overall Width, in (mm) |
71 (1800) |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
48 (1215) |
| Overall Width, in (mm) |
52 (1320) |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
54 (1370) |
| Lift System |
Hydraulic |
| Angle |
Hydraulic |
