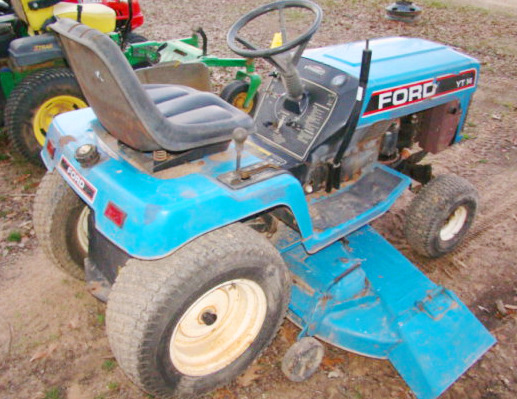

Ford YT-14 Lawn Tractor
The
Ford YT14 lawn tractor was manufactured from 1991 to 1992. The Ford YT-14
powerline components: Kohler Command CV14S four-cycle single-cylinder vertical
shaft air-cooled gasoline engine and Peerless 801 transmission with 5 forward
and 1 reverse gears.
A 24.3 cubic inches (398 cc) engine has a cylinder bore of 3.43" (87
mm), piston stroke of 2.64" (67 mm), and rated power of 14 hp (10.5 kW).
The maximum forward speed - 5 mph (8 km/h) mph, maximum reverse speed -
1.6 mph (2.6 km/h).
The Ford YT-14 was equipped with a manual steering system, mechanical
caliper brakes, 15x6.00-6 front tires, and 22.5x9.00-12 rear tires. The
wheelbase is 49" (1240 mm). The tractor is compatible with a 42"
mid-mount 3-blade right-discharge mower deck with cutting height of
1.5-3.5" (38-90 mm) and mechanical lifting.
| Engine Model |
Kohler Command CV14S |
| Engine Type |
Gasoline vertical shaft four-cycle |
| Number of Cylinder |
Single |
| Piston Displacement, cu.in (cc) |
24.3 (398) |
| Engine Bore, in (mm) |
3.43 (87.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Engine Power, Hp (kW) |
14.0 (10.5) |
| Maximum Torque, Nm (ft-lb) |
27.8 (20.5) |
| Fast Idle Speed, rpm |
2500 |
| Low Idle Speed, rpm |
1500 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float Fixed Main Jet |
| Fuel Pump |
Diaphragm Type Mechanical Pump |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable, high density paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Pump Type |
Gerotor |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic magneto |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Ignition Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
1.9 (2.0) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Peerless 801 |
| Transmission Type |
Gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
0.95 (0.90) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical caliper |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
22.5x9.00-12 |
| Wheelbase, in (mm) |
49 (1240) |
| Length, in (mm) |
73 (1850) |
| Height, in (mm) |
39 (990) |
| Overall Width, in (mm) |
36 (910) |
| Ground Clearance, in (mm) |
8.5 (210) |
| Weight (with 42" Mower Deck), lb (kg) |
688 (312) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-3.5 (38-90) |
| Lift System |
Manual |
