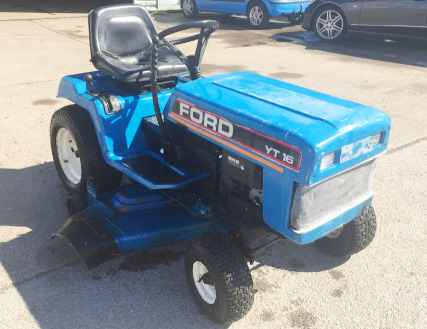

Ford YT-16 Lawn Tractor
The
Ford YT16 lawn tractor was manufactured from Gilson built between 1984 and 1993.
Ford YT-16 tractor is powered by Briggs and Stratton 402707 4-cycle 2-cylinder
vertical shaft air-cooled gasoline engine with a rated power of 16 hp (11.9 kW),
or Kohler MV16 4-cycle 2-cylinder vertical shaft air-cooled gasoline engine with
a rated power of 16 hp (11.9 kW).
The Ford YT16 is equipped with Peerless 801 belt-driven gear
transmission with 5 forward and 1 reverse gears. The maximum forward
speed - 5 mph (8 kph), maximum reverse speed - 1.6 mph (2.6 kph).
The Ford YT-16 was equipped with a manual steering system, mechanical
caliper brakes, 15x6.00-6 front tires, and 22.5x9.00-12 rear tires. The
wheelbase is 49" (1240 mm). The tractor is compatible with the following
attachments: 42" or 48" mid-mount 3-blade mower decks with cutting
height of 1.5-3.5" (38-90 mm) and mechanical or electric lift, 36"
front-mount single-stage snowblower with manual or electric lift system,
and 42" front blade with manual angle.
| Engine Model |
Briggs and Stratton 402707 |
| Engine Type |
4-cycle vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.1 (655) |
| Cylinder Bore, in (mm) |
3.44 (87.0) |
| Piston Stroke, in (mm) |
2.16 (55.0) |
| Rated Engine Power, hp (kW) |
16.0 (11.9) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Pressure lubrication |
| Air Cleaner |
Dual element with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.007-0.009 (0.18-0.23) |
| Fuel Tank Capacity, gal (L) |
2.3 (8.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Engine Model |
Kohler MV16 |
| Engine Type |
Gasoline vertical shaft four-cycle air-cooled |
| Number of Cylinder |
2 |
| Piston Displacement, cu.in (cc) |
42.2 (691) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.75 (70.0) |
| Engine Power, Hp (kW) |
16.0 (11.9) |
| Rated Engine Speed, rpm |
3600 |
| Low Idle Speed, rpm |
1450 |
| Compression Ratio |
5.8:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float Fixed Main Jet |
| Fuel Pump |
Mechanical |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Cooling System |
Air Intake |
| Air Cleaner |
Dual element |
| Lubrication System Type |
Full-Pressure |
| Ignition System Type |
Electronic magneto |
| Spark Plug |
Champion RV12YC |
| Spark Plug Gap, in (mm) |
0.025 (0.63) |
| Ignition Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
1.9 (2.0) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Peerless 801 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
1.1 (1.0) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Manual caliper |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
22.5x9.00-12 |
| Wheelbase, in (mm) |
49 (1240) |
| Length, in (mm) |
73 (1850) |
| Height, in (mm) |
39 (990) |
| Overall Width, in (mm) |
36 (910) |
| Ground Clearance, in (mm) |
8.5 (210) |
| Weight (with 42" Mower Deck), lb (kg) |
738 (335) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-3.5 (38-90) |
| Lift System |
Manual/Electric |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.5-3.5 (38-90) |
| Lift System |
Manual/Electric |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
36 (910) |
| Lift System |
Manual/Electric |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (106) |
| Lift System |
Manual/Electric |
| Angle |
Manual |
