Honda H3011H Lawn Mower
The

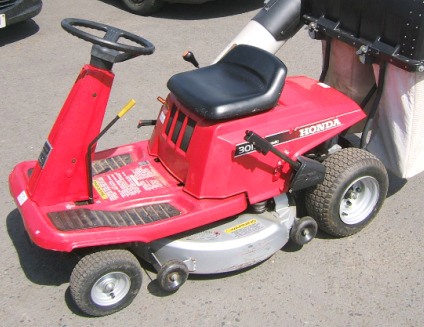

Honda H3011H riding lawn mower was manufactured between 1989 and 1992. The Honda
H3011H powerline components: Honda GXV340 4-cycle OHV single cylinder air-cooled
gasoline engine and belt-driven hydrostatic transmission with infinite forward
and reverse gears.
A 20.6 cubic inches (337 cc) engine has a cylinder bore of 3.24" (82
mm), piston stroke of 2.53" (64 mm), rated power of 11 hp (8.2 kW), and
maximum torque of 23.1 Nm (16.9 lb-ft) at 2500 rev/min. The maximum
forward speed - 4.7 mph (7.6 kph), maximum reverse speed - 1.7 mph (2.7
kph).
The lawn mower was equipped with a manual steering system, mechanical
brakes, 11x4.00-5 front tires, and 16x6.50-8 rear tires. The wheelbase
is 43.3" (1100 mm). The Honda H3011H is compatible with a 30" mid-mount
1-blade mower deck with cutting height of 1.0-3.5" (25-89 mm), 6 cut
positions, and mechanical lift system.
| Engine Model |
Honda GXV340 |
| Engine Type |
Gasoline, 4-stroke OHV 1-cylinder air-cooled |
| Number of Cylinders |
Single |
| Displacement, cu.in (cc) |
20.6 (337) |
| Engine Bore, in (mm) |
3.24 (82.0) |
| Engine Stroke, in (mm) |
2.53 (64.0) |
| Rated Engine Power, hp (kW) |
11.0 (8.2) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
23.1 (16.9) |
| Torque Speed, rpm |
2500 |
| Compression Ratio |
7.7:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Horizontal, butterfly valve |
| Governor Type |
Mechanical centrifugal |
| Lubrication System |
Pressure and splash type |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Transistor type magneto |
| Spark Plug Type |
NGK BPR5ES or Denso W16EPR-U |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Module Air Gap, in (mm) |
0.008-0.024 (0.20-0.60) |
| Stopping System |
Ignition primary circuit ground |
| Intake Valve Clearance, in (mm) |
0.006 (0.15) |
| Exhaust Valve Clearance, in (mm) |
0.008 (0.20) |
| Fuel Tank Capacity, gal (L) |
0.7 (2.6) |
| Oil Capacity, qts (L) |
1.2 (1.1) |
| Electrical System Rating, Volts |
12 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating, AH |
22 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Clutch |
Mechanical |
| Mid PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite, 2 ranges |
| Number of Reverse Gears |
Infinite, 1 range |
| Speed Position |
3 (Transport, Mowing and Reverse) |
| Oil Capacity, qts (L) |
4.70 (4.45) |
| Maximum Forward Speed (Mowing), mph (kph) |
3.3 (5.3) |
| Maximum Forward Speed (Transport), mph (kph) |
4.7 (7.6) |
| Maximum Reverse Speed, mph (kph) |
1.7 (2.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical |
| Front Tire Size |
11x4.00-5 |
| Rear Tire Size |
16x6.50-8 |
| Front Tire Pressure, psi (kPa) |
14.5 (1.0) |
| Rear Tire Pressure, psi (kPa) |
10.2 (0.7) |
| Front Tread Width, in (mm) |
22.4 (570) |
| Rear Tread Width, in (mm) |
26.0 (660) |
| Wheelbase, in (mm) |
43.3 (1100) |
| Length, in (mm) |
61 (1550) |
| Height (Steering Wheel), in (mm) |
39.4 (1000) |
| Overall Width, in (mm) |
42.1 (1070) |
| Weight, lb (kg) |
400 (178) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
1 |
| Cutting Width, in (mm) |
30 (760) |
| Cutting Height, in (mm) |
1.0-3.5 (25-89) |
| Cut Positions |
6 |
| Drive Type |
Belt |
| Lift System |
Manual |
| Cylinder Compression, psi (kPa) |
85-121 (600-850) |
| Intake Valve Clearance, in (mm) |
0.006 (0.15) |
| Exhaust Valve Clearance, in (mm) |
0.008 (0.20) |
| Carburetor Idle Fuel |
2-1/2 turns out |
| Low Idle Speed, rpm |
1400±150 |
| High Idle Speed, rpm |
3400±150 |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Engine And Transmission Oil |
| Engine Oil Type (Summer) |
SAE 10W-40 |
| Engine Oil Type (Winter) |
SAE 5W-30 |
| API Service Classifications |
SE, SF or SG |
| Engine Oil Capacity, qts (L) |
1.20 (1.10) |
| Transmission Oil Type |
Honda HST Oil |
| Transmission Oil Capacity, qts (L) |
4.70 (4.45) |
| Engine Air Filter |
Part Number: 17210-ZF5-505 |
| Spark Plug |
Part Number: 98079-55846 (NGK BPR5ES) |
| Transmission Belt |
Part Number: 76182-751-023 |
| Mower Belt |
Part Number: 76181-763-A02 |
| Mower Blade |
Part Number: 72511-763-A30 |
| Service Air Filter Element |
Every 50 hours |
| Adjust Mower Deck Belt |
Every 50 hours |
| Check Mower Blade Bolt Tightness |
Every 50 hours |
| Change Engine Oil |
Every 100 hours |
| Check and Adjust Spark Plug |
Every 100 hours |
| Check Transmission Oil Level |
Every 100 hours |
| Adjust Drive Clutch |
Every 100 hours |
| Check Carburetor Adjustment |
Every 100 hours |
| Check and Adjust Valve Clearance |
Every 300 hours |
| Replace Spark Plug |
Every 300 hours |
| Change Transmission Oil |
Every 500 hours |
