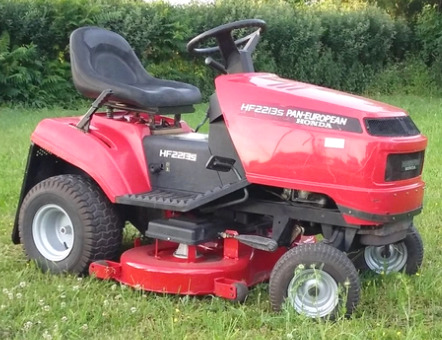

Honda HF2213S Lawn Tractor
The
Honda HF2213S lawn tractor was manufactured from 1993 to 2003. The Honda HF2213S
driveline includes a Honda GXV390 4-stroke OHV single-cylinder air-cooled
gasoline engine and belt-driven gear transmission with 5 forward and 1 reverse
gears.
A 23.7 cubic inches (389 cc) engine has a cylinder bore of 3.47" (88
mm), piston stroke of 2.53" (64 mm), rated power of 13 hp (9.7 kW), and
max torque of 28 Nm (20.3 lb-ft) at 2500 rev/min. Max forward speed - 5
mph (8 km/h), max reverse speed - 1.6 mph (2.6 km/h).
The Honda HF2213S was equipped with a manual steering system, mechanical
brakes, 16x5.00-6 front tires, and 18x8.50-8 rear tires. The wheel base
is 45.3" (1150 mm). The lawn tractor is compatible with a 40" mid-mount
2-blade mower deck with cutting height of 1.0-3.5 in (25-90 mm), 7 cut
positions, and mechanical lift system.
| Engine Model |
Honda GXV390 |
| Engine Type |
Gasoline, 4-stroke OHV single-cylinder air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
23.7 (389) |
| Engine Bore, in (mm) |
3.47 (88.0) |
| Engine Stroke, in (mm) |
2.53 (64.0) |
| Rated Engine Power, hp (kW) |
13.0 (9.7) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
28 (20.3) |
| Torque Speed, rpm |
2500 |
| Compression Ratio |
7.7:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Horizontal, butterfly valve |
| Governor Type |
Mechanical centrifugal |
| Lubrication System |
Pressure and splash type |
| Air Cleaner |
Dual dry element |
| Cooling System |
Forced air |
| Ignition System |
Transistor type magneto |
| Spark Plug Type |
NGK BPR5ES or Denso W16EPR-U |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Module Air Gap, in (mm) |
0.008-0.024 (0.20-0.60) |
| Stopping System |
Primary circuit ground |
| Intake Valve Clearance, in (mm) |
0.004 (0.10) |
| Exhaust Valve Clearance, in (mm) |
0.006 (0.15) |
| Fuel Tank Capacity, qts (L) |
1.85 (7.0) |
| Oil Capacity, qts (L) |
1.20 (1.10) |
| Electrical System Rating, Volts |
12 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating, AH |
18 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Clutch |
Mechanical |
| Mid PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical |
| Front Tire Size |
16x5.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Front Tire Pressure, psi (kPa) |
21.8 (1.5) |
| Rear Tire Pressure, psi (kPa) |
17.5 (1.2) |
| Front Tread Width, in (mm) |
34.8 (880) |
| Rear Tread Width, in (mm) |
37.5 (950) |
| Wheelbase, in (mm) |
45.3 (1150) |
| Length, in (mm) |
70.3 (1780) |
| Length (with Grass Bagger), in (mm) |
90 (2300) |
| Height (Steering Wheel), in (mm) |
42.3 (1070) |
| Overall Width, in (mm) |
49.8 (1260) |
| Turning Radius, in (mm) |
25.7 (650) |
| Weight, lb (kg) |
485 (220) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
40 (1020) |
| Cutting Height, in (mm) |
1.0-3.5 (25-90) |
| Cut Positions |
7 |
| Drive Type |
Belt |
| Lift System |
Manual |
| Cylinder Compression, psi (kPa) |
71-151 (50-850) |
| Intake Valve Clearance, in (mm) |
0.004±0.001 (0.10±0.02) |
| Exhaust Valve Clearance, in (mm) |
0.006±0.001 (0.15±0.02) |
| Carburetor Idle Fuel |
2-1/2 turns out |
| Low Idle Speed, rpm |
1400±150 |
| High Idle Speed, rpm |
3400±150 |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Engine And Transmission Oil |
| Engine Oil Type (Summer) |
SAE 10W-30 |
| Engine Oil Type (Winter) |
SAE 5W-30 |
| API Service Classifications |
SE or higher |
| Engine Oil Capacity, qts (L) |
1.20 (1.10) |
| Transmission Oil Type |
SAE 10W-30 |
| Engine Air Filter |
Part Number: 17210-ZF5-505 |
| Spark Plug |
Part Number: 98079-55846 (NGK BPR5ES) |
| Mower Belt |
Part Number: 80481-VK1-003 / 80480-VK1-003 |
| Transmission Belt |
Part Number: CG35061501H0 |
| Mower Blade |
Part Number: 72531-VK1-A11 (Left) / 72511-VK1-A11 (Right) |
| Service Air Cleaner Element |
Every 50 hours |
| Check Mower Deck Belt |
Every 50 hours |
| Check Mower Blade Bolt Tightness |
Every 50 hours |
| Change Engine Oil |
Every 100 hours |
| Check and Adjust Spark Plug |
Every 100 hours |
| Check Transmission Oil Level |
Every 100 hours |
| Clean Fuel Tank and Filter |
Every 300 hours |
| Check Carburetor Adjustment |
Every 300 hours |
| Replace Air Cleaner Element |
Every 300 hours |
| Check and Adjust Valve Clearance |
Every 300 hours |
| Replace Spark Plug |
Every 300 hours |
