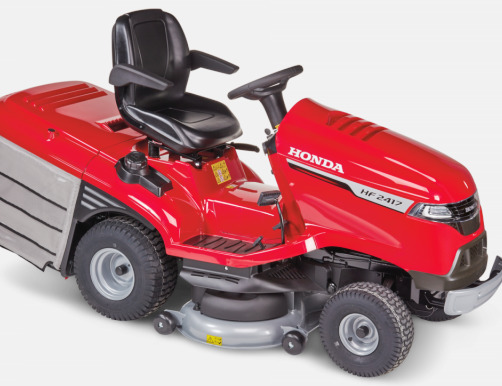

Honda HF2417 HT Lawn Tractor

The Honda HF2417HT lawn tractor was manufactured from 2014 to 2020. The Honda HF2417 HT powerline system components: Honda GCV530 4-cycle OHC V-twin cylinder air-cooled gasoline engine and 1-range belt-driven hydrostatic transmission with infinite forward and reverse gears.

A 32.3 cubic inches (530 cc) engine has a cylinder bore of 3.03" (77 mm), piston stroke of 2.26" (57 mm), rated power of 16 hp (11.9 kW), and peak torque of 36.5 Nm (26.9 lb-ft) at 2500 rev/min. Max forward speed - 5.1 mph (8.2 kph), max reverse speed - 2.6 mph (4.2 kph).

The lawn tractor is equipped with a manual steering system, mechanical brakes, 15x6.00-6 front tires, and 18x8.50-8 rear tires. The wheel base is 45.5" (1150 mm). The Honda HF2417HT is compatible with a 40" mid-mount 2-blade mower deck with cutting height of 1.0-3.5 in (25-90 mm), electric grass bagger dump, electromagnetic blade engagement, 7 cut positions, and mechanical lifting.

Engine
Engine Model Honda GCV530
Engine Type Gasoline, 4-cycle OHC V-twin
Number of Cylinders 2
Displacement, cu.in (cc) 32.3 (530)
Engine Bore, in (mm) 3.03 (77.0)
Engine Stroke, in (mm) 2.26 (57.0)
Rated Engine Power, hp (kW) 16.0 (11.9)
Rated Engine Speed, rpm 3600
Maximum Torque, Nm (ft-lbs) 36.5 (26.9)
Torque Speed, rpm 2500
Compression Ratio 8.0:1
Fuel System Type Carburetor
Carburetor Type Horizontal, two barrels butterfly valve
Governor Type Centrifugal
Lubrication System Forced
Air Cleaner Dual element
Cooling System Forced air
Ignition System Transistorized magneto
Spark Plug Type NGK BPR5ES or Denso W16EPR-U
Spark Plug Gap, in (mm) 0.028-0.032 (0.70-0.80)
Module Air Gap, in (mm) 0.008-0.024 (0.20-0.60)
Stopping System Primary circuit ground
Intake Valve Clearance, in (mm) 0.004 (0.10)
Exhaust Valve Clearance, in (mm) 0.006 (0.15)
Fuel Tank Capacity, gal (L) 1.4 (5.4)
Oil Capacity (with Filter), qts (L) 1.20 (1.10)

Electrical System
Electrical System Rating, Volts 12
Electrical Ground Negative
Starter Type Electric
Number of Batteries 1
Battery Rating, AH 24

Power Take-Off
Mid PTO Operational Type Independent
Mid PTO Clutch Electro-magnetic
Mid PTO Speed, rpm 3600

Transmission
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite, 1-range
Number of Reverse Gears Infinite, 1-range
Maximum Forward Speed, mph (kph) 5.1 (8.2)
Maximum Reverse Speed, mph (kph) 2.6 (4.2)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Mechanical
Front Tire Size 15x6.00-6
Rear Tire Size 18x8.50-8
Front Tire Pressure, psi (kPa) 14.5 (1.0)
Rear Tire Pressure, psi (kPa) 17.5 (1.2)
Front Tread Width, in (mm) 34.8 (880)
Rear Tread Width, in (mm) 37.6 (950)


Dimensions and Weight
Wheelbase, in (mm) 45.5 (1150)
Length, in (mm) 74 (1870)
Length (with Grass Bagger), in (mm) 98 (2480)
Height (Steering Wheel), in (mm) 44.4 (1120)
Overall Width, in (mm) 41.6 (1050)
Turning Radius, in (mm) 35.5 (900)
Grass Bagger Capacity, Bu (L) 8.5 (300)
Weight, lb (kg) 521 (237)

40-in Mower Deck
Mower Deck Type Mid-mount
Number of Blades 2
Blade Positioning Synchronous
Blade Brake Clutch Electromagnetic
Cutting Width, in (mm) 40 (1020)
Cutting Height, in (mm) 1.0-3.5 (25-90)
Cut Positions 7
Drive Type Belt
Lift System Manual
Grass Bagger Dump Electric

General Maintenance Data
Cylinder Compression, psi (kPa) 85-114 (600-800)
Intake Valve Clearance, in (mm) 0.004 (0.10)
Exhaust Valve Clearance, in (mm) 0.006 (0.15)
Carburetor Idle Fuel 1-5/8 and 1-11/16 turns out
Low Idle Speed, rpm 1400±150
High Idle Speed, rpm 3300±150
Spark Plug Gap, in (mm) 0.028-0.032 (0.70-0.80)

Engine And Transmission Oil
Engine Oil Type (Summer) SAE 10W-30, 15W-30
Engine Oil Type (Winter) SAE 5W-30
API Service Classifications SE or higher
Engine Oil Capacity (with Filter), qts (L) 1.37 (1.30)
Engine Oil Capacity (w/o Filter), qts (L) 1.20 (1.10)
Transmission Oil Type Honda HST Oil

Replacement Parts
Engine Air Filter Part Number: 17211-Z0A-013
Engine Oil Filter Part Number: 15400-PFB-014
Spark Plug Part Number: 98079-55846 (NGK BPR5ES)
Transmission Belt Part Number: 80477-VK1-003
Mower Belt Part Number: 80480-VK1-003 / 80481-VK1-003
Mower Blade Part Number: 72531-VK1-A11 (Left) / 72511-VK1-A11 (Right)

Service Intervals
Check Mower Blade Bolt Tightness Every 25 hours
Service Air Filter Element Every 50 hours
Check and Adjust Transmission Belt Every 50 hours
Check and Adjust Mower Deck Belt Every 50 hours
Change Engine Oil Every 100 hours
Replace Engine Oil Filter Every 100 hours
Check Transmission Oil Level Every 100 hours
Check and Adjust Spark Plug Every 100 hours
Replace Air Filter Element Every 200 hours
Replace Fuel Filter Element Every 200 hours
Check Carburetor Adjustment Every 200 hours
Check and Adjust Valve Clearance Every 200 hours
Replace Spark Plug Every 200 hours
Change Transmission Oil Every 500 hours
