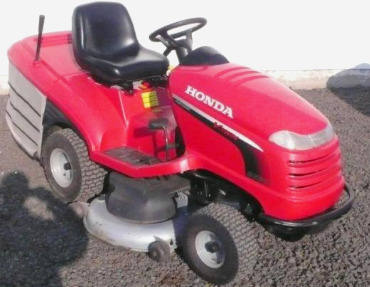

Honda HF2620HM Lawn Tractor
The
Honda HF2620HM is a two-wheel drive lawn tractor. This model was manufactured
between 2004 and 2012. The Honda HF2620HM driveline includes a 37.5 cubic inches
(614 cc) Honda GXV620 4-cycle OHV V-twin cylinder gasoline engine with a rated
power of 20 hp (14.9 kW), and 1-range belt-driven hydrostatic transmission with
infinite forward and reverse gears.
The engine has a horizontal butterfly valve carburetor, forced air
cooling system, and transistorized magneto ignition. The maximum forward
speed - 5.1 mph (8.2 kph), max. reverse speed - 2.6 mph (4.2 kph).
The tractor is fitted with 15x6.00-6 front tires and 18x8.50-8 rear
tires. The wheelbase is 45.5 inches (1150 mm). The Honda HF2620HM is
compatible with a 48" mid-mount 2-blade mower deck with cutting height
of 1.0-3.5 inches (25-90 mm), 7 cut positions, mechanical lifting, and
manual grass bagger dump.
| Engine Model |
Honda GXV620 |
| Engine Type |
Gasoline, 4-cycle OHV V-twin |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
37.5 (614) |
| Engine Bore, in (mm) |
3.03 (77.0) |
| Engine Stroke, in (mm) |
2.61 (66.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
44.1 (32.5) |
| Torque Speed, rpm |
2500 |
| Compression Ratio |
8.3:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Horizontal, butterfly valve |
| Governor Type |
Centrifugal |
| Lubrication System |
Forced |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Transistorized magneto |
| Spark Plug Type |
NGK ZGR5A or Denso J16CR-U |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Module Air Gap, in (mm) |
0.008-0.024 (0.20-0.60) |
| Stopping System |
Primary circuit ground |
| Intake Valve Clearance, in (mm) |
0.006 (0.15) |
| Exhaust Valve Clearance, in (mm) |
0.008 (0.20) |
| Fuel Tank Capacity, gal (L) |
1.4 (5.4) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Electrical Ground |
Negative |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating, AH |
24 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Clutch |
Electro-magnetic |
| Mid PTO Speed, rpm |
3600 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite, 1 range |
| Number of Reverse Gears |
Infinite, 1 range |
| Maximum Forward Speed, mph (kph) |
5.1 (8.2) |
| Maximum Reverse Speed, mph (kph) |
2.6 (4.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Front Tire Pressure, psi (kPa) |
14.5 (1.0) |
| Rear Tire Pressure, psi (kPa) |
17.5 (1.2) |
| Front Tread Width, in (mm) |
34.8 (880) |
| Rear Tread Width, in (mm) |
37.6 (950) |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
74 (1870) |
| Length (with Grass Bagger), in (mm) |
98 (2480) |
| Height (Steering Wheel), in (mm) |
44.4 (1120) |
| Overall Width, in (mm) |
50 (1260) |
| Turning Radius, in (mm) |
31.6 (800) |
| Grass Bagger Capacity, Bu (L) |
10 (350) |
| Weight, lb (kg) |
539 (245) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Blade Positioning |
Synchronous |
| Blade Brake Clutch |
Electromagnetic |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.0-3.5 (25-90) |
| Cut Positions |
7 |
| Drive Type |
Belt |
| Lift System |
Manual |
| Grass Bagger Dump |
Manual |
| Cylinder Compression, psi (kPa) |
85-114 (600-800) |
| Intake Valve Clearance, in (mm) |
0.006 (0.15) |
| Exhaust Valve Clearance, in (mm) |
0.008 (0.20) |
| Carburetor Idle Fuel |
1-3/4 turns out |
| Low Idle Speed, rpm |
1400±150 |
| High Idle Speed, rpm |
3400±150 |
| Spark Plug Gap, in (mm) |
0.028-0.032 (0.70-0.80) |
| Engine And Transmission Oil |
| Engine Oil Type (Summer) |
SAE 10W-30 |
| Engine Oil Type (Winter) |
SAE 5W-30 |
| API Service Classifications |
SG or SF |
| Oil Capacity (with Filter), qts (L) |
2.3 (2.2) |
| Oil Capacity (w/o Filter), qts (L) |
2.0 (1.9) |
| Transmission Oil Type |
Honda HST Oil |
| Engine Air Filter |
Part Number: 17210-ZJ1-842 |
| Engine Oil Filter |
Part Number: 15400-PFB-014 |
| Spark Plug |
Part Number: 98079-5587V (NGK ZGR5A) |
| Transmission Belt |
Part Number: 80477-VK1-003 |
| Mower Belt |
Part Number: 80479-VK1-003 / 80482-VK1-003 |
| Mower Blade |
Part Number: 80517-VK1-003 (Left) / 80518-VK1-003 (Right) |
| Check Mower Blade Bolt Tightness |
Every 25 hours |
| Check and Adjust Transmission Belt |
Every 25 hours |
| Check and Adjust Mower Deck Belt |
Every 25 hours |
| Service Air Filter Element |
Every 50 hours |
| Change Engine Oil |
Every 100 hours |
| Check and Adjust Spark Plug |
Every 100 hours |
| Replace Mower Blade |
Every 100 hours |
| Replace Engine Oil Filter |
Every 100 hours |
| Check Transmission Oil Level |
Every 100 hours |
| Replace Air Filter Element |
Every 300 hours |
| Check Carburetor Adjustment |
Every 300 hours |
| Check and Adjust Valve Clearance |
Every 300 hours |
| Replace Spark Plug |
Every 300 hours |
| Change Transmission Oil |
Every 300 hours |
