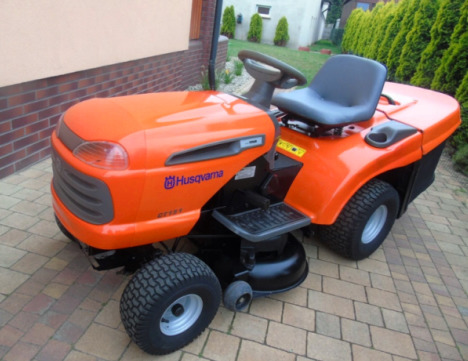

Husqvarna CT151 Lawn Tractor
The
Husqvarna CT 151 lawn tractor was manufactured from 2004 to 2010. The components
of Husqvarna CT151 powerline system: a 29.1 cu.in (477 cc) Kohler Courage SV470
4-cycle single-cylinder vertical shaft air-cooled gasoline engine and Dana D6800
mechanical transmission with 6 forward and 1 reverse gears.
The engine has a cylinder bore of 3.30" (84 mm), piston stroke of 3.38"
(86 mm), rated power of 15 hp (11.2 kW), and max torque of 34.3 Nm (25
lb-ft) at 2600 rpm. Max. travel speed (forward/reverse): 4.9 mph (7.8
km/h) and 1.6 mph (2.5 km/h).
The lawn tractor was equipped with a manual steering system, disc
brakes, 15x6.00-6 front tires, and 18x9.50-8 rear tires. The wheelbase
is 46.9 in (1190 mm). The Husqvarna CT151 is compatible with a 36"
mid-mount 2-blade mower deck with cutting height of 1.0-3.5 in (25-90
mm), six cut positions, two anti-scalp wheels, and mechanical lift
system.
| Engine Model |
Kohler Courage SV470 |
| Engine Type |
Gasoline, 4-cycle single-cylinder vertical shaft air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
29.1 (477) |
| Engine Bore, in (mm) |
3.30 (84.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Low Idle Speed, rpm |
1450-1550 |
| Maximum Torque, Nm (ft-lbs) |
34.3 (25.0) |
| Torque Speed, rpm |
2600 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Governor |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC or QC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.6) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Dana D6800 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
4.9 (7.8) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
46.9 (1190) |
| Length, in (mm) |
98 (2500) |
| Height, in (mm) |
40 (1010) |
| Overall Width, in (mm) |
37.8 (960) |
| Ground Clearance, in (mm) |
6 (150) |
| Weight, lb (kg) |
429 (195) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Deck Type |
Stamped |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.0-3.5 (25-90) |
| Cut positions |
6 |
| Anti-Scalp Wheels |
2 |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Deck Type |
Stamped |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut positions |
6 |
| Anti-Scalp Wheels |
2 |
| Lift System |
Mechanical |
