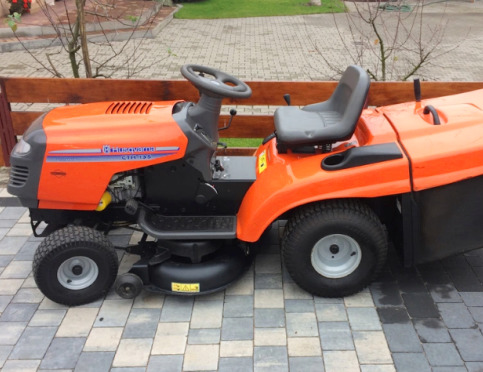

Husqvarna CTH135 Lawn Tractor
The
Husqvarna CTH 135 lawn tractor was manufactured between 2002 and 2003. The
components of Husqvarna CTH135 powerline system: a 30.5 cu.in (500 cc) Briggs
and Stratton 31G777 Intek 4-cycle single cylinder OHV vertical shaft air-cooled
gasoline engine with a rated power of 17.5 hp (13 kW), and Hydro-Gear 321-0510
belt-driven hydrostatic transmission with infinite forward and reverse gears.
The engine has a float-feed carburetor, pulse type fuel pump,
lubrication with oil pump and filter, and air cleaner with dual element.
The maximum travel speed (forward/reverse): 5 mph (8 km/h) and 2.4 mph
(3.8 km/h). The Husqvarna CTH 135 is equipped with a manual steering
system, disc brakes, 15x6.00-6 front tires, and 18x8.50-8 rear tires.
The wheelbase is 46.9" (1190 mm).
The tractor is compatible with a 36" mid-mount 2-blade side discharge
mower deck with cutting height of 1.5-4.0 in (38-102 mm), 6 cut
positions, manual blade engagement, and mechanical lift system.
| Engine Model |
Briggs and Stratton 31G777 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.5 (500) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
17.5 (13.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Oil pump with filter |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.5) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Hydro-Gear 321-0510 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Wheelbase, in (mm) |
46.9 (1190) |
| Length, in (mm) |
89 (2260) |
| Height, in (mm) |
40.6 (1030) |
| Overall Width, in (mm) |
36.2 (920) |
| Turning Radius, in (mm) |
16 (407) |
| Weight, lb (kg) |
396 (180) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Mower Deck Material |
Steel |
| Cutting Deck Type |
Stamped |
| Cutting Method |
Side discharge |
| Cutting Width, in (mm) |
36 (920) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut positions |
6 |
| Blade Engagement |
Manual |
| Lift System |
Mechanical |
