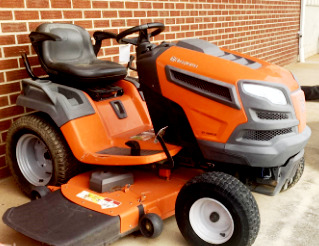

Husqvarna GT48DXLS Garden Tractor
The
Husqvarna GT48DXLS is a 2-wheel drive garden tractor. This model was
manufactured from 2016 to 2018. The Husqvarna GT48DXLS powertrain system
components: Kawasaki FR730V 4-cycle vertical-shaft V-twin air-cooled gasoline
engine and Tuff Torq K66 ELD belt-driven hydrostatic transmission with infinite
forward and reverse gears.
A 44.3 cubic inches (726 cc) engine has a cylinder bore of 3.07" (78
mm), piston stroke of 3.00" (76 mm), and rated power of 24 hp (18 kW).
Max. travel speed (forward/reverse): 5.5 mph (8.8 km/h) and 2.4 mph (3.8
km/h).
The garden tractor is equipped with a manual steering system, disc
brakes, 16x6.50-8 front tires, and 23x10.50-12 rear tires. The wheel
base is 48 in (1210 mm). The Husqvarna GT48DXLS is compatible with a 48"
mid-mount 3-blade side discharge mower deck with cutting height of
1.5-4.0 inches (38-102 mm) and mechanical lift system with hand
operated.
| Engine Model |
Kawasaki FR730V |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.3 (726) |
| Engine Bore, in (mm) |
3.07 (78.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
53.8 (39.7) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.2:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Internally vented with fuel shut-off solenoid |
| Lubrication System |
Full pressure with spin-on oil filter |
| Ignition System |
Electronic spark ignition |
| Spark Plug |
NGK BPR4ES |
| Spark Plug Gap, in (mm) |
0.027-0.031 (0.7-0.8) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K66 ELD |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
22.19:1 |
| Axle Shaft Size, in (mm) |
1.0 (25.4) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
71.3 (1810) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width (Min), in (mm) |
48.7 (1230) |
| Overall Width (Max), in (mm) |
62.3 (1580) |
| Ground Clearance, in (mm) |
7.5 (190) |
| Weight, lb (kg) |
630 (286) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Fabricated |
| Mower Deck Material |
Steel |
| Cutting Method |
Side discharge |
| Number of Blades |
3 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
48 (1220) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
7 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
