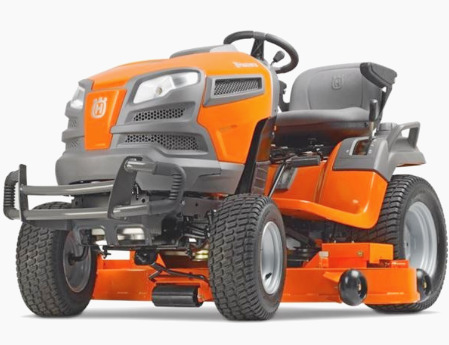

Husqvarna GT52XLSi Garden Tractor
The
Husqvarna GT52XLSi is a 2WD garden tractor with a fabricated deck and heavy-duty
chassis. This model was manufactured between 2016 and 2018.
The components of Husqvarna GT52XLSi powerline system: 44.2 cu.in (724
cc) Briggs and Stratton 44N877 four-cycle 2-cylinder vertical-shaft
air-cooled gasoline engine with a maximum power of 24 hp (18 kW), and
Tuff Torq K66 belt-driven hydrostatic transmission with foot-controlled
variable speed drive. The Endurance series engine has a fixed main jet
carburetor, full pressure lubrication system with oil filter, and
SmartSwitch electronic ignition system.
The maximum forward speed - 5.5 mph (8.8 km/h), max. reverse speed - 2.5
mph (3.5 km/h). The tractor is fitted with 16x6.5-8 front tires and
23x10.50-12 rear tires. The wheelbase is 48" (1210 mm). The Husqvarna
GT52XLSi is compatible with a 52" mid-mount 3-blade side discharge mower
deck with cutting height of 1.5-4.0" (37-100 mm) and mechanical or
hydraulic lifting system.
| Engine Model |
Briggs and Stratton 44N877 |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
52.2 (38.7) |
| Torque Speed, rpm |
2400 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K66 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
22.19:1 |
| Axle Shaft Size, in (mm) |
1.0 (25.4) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.5 (3.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
71.3 (1810) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width, in (mm) |
53.3 (1350) |
| Ground Clearance, in (mm) |
7.5 (190) |
| Weight, lb (kg) |
635 (288) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
52 (1320) |
| Overall Width, in (mm) |
66.8 (1690) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut Positions |
7 |
| Blade Engagement |
Electric |
| Blade Type |
Hi Performance |
| Cutting Height Adjuster |
Fender-mounted |
| Anti-Scalp Wheels |
4 |
| Lift System |
Mechanical/Hydraulic |
