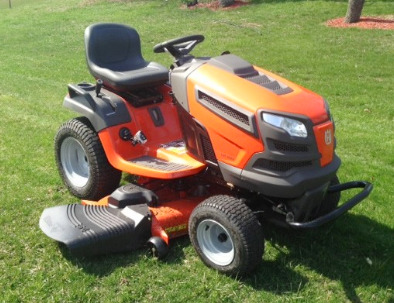

Husqvarna LGT2654 Lawn Tractor
The
Husqvarna LGT2654 is a 2WD lawn tractor. This model was manufactured from 2007
to 2013. The components of Husqvarna LGT2654 driveline system: Kohler Courage
SV735 2-cylinder overhead valve air-cooled gasoline engine and Tuff Torq K46
belt-driven hydrostatic transmission.
The maximum travel speed (forward and reverse): 5.2 mph (8.4 kph) / 2.9
mph (4.7 kph). A 44.3 cubic inches (725 cc) engine output is 26 Hp (19.4
kW), and a maximum torque is 56.2 Nm (41.5 lb-ft) at 2800 rpm. The
engine has one-barrel fixed main jet carburetor, pulse fuel pump, and
full pressure lubrication.
The Husqvarna LGT2654 lawn tractor was equipped with a manual steering
system, mechanical disc brakes, 16.5x6.50-8 front tyres, and 22x9.50-12
rear tyres. The wheelbase is 48 inches (1210 mm). The tractor is
compatible with a 54" mid-mount 3-blade mower deck.
| Engine Model |
Kohler Courage SV735 |
| Engine Type |
Gasoline, 4-cycle 2-cylinder, OHV, air-cooled |
| Number of Cylinders |
V-Twin |
| Displacement, cu.in (cc) |
44.3 (725) |
| Engine Bore, in (mm) |
3.27 (83.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
26.0 (19.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1100-1300 |
| Maximum Torque, Nm (ft-lbs) |
56.2 (41.5) |
| Torque Speed, rpm |
2800 |
| Compression |
9.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
One-Barrel, fixed main jet |
| Fuel Pump |
Pulse type |
| Governor |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
21.53:1 |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
16.5x6.50-8 |
| Rear Tire Size |
22x9.50-12 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
70.5 (1790) |
| Height, in (mm) |
42.5 (1070) |
| Overall Width, in (mm) |
57 (1440) |
| Ground Clearance, in (mm) |
7 (175) |
| Weight, lb (kg) |
548 (248) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1370) |
| Overall Width, in (mm) |
67.5 (1710) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
7 |
| Lift System |
Mechanical/Hydraulic |
