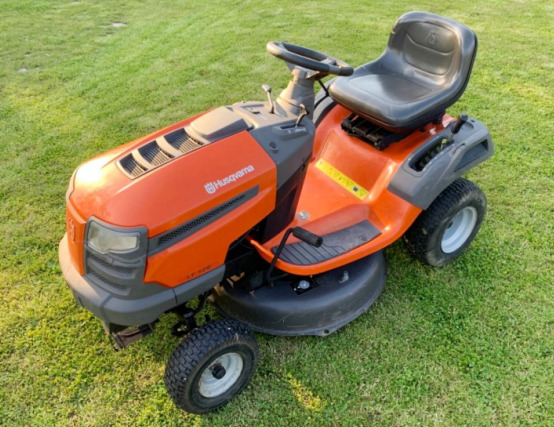

Husqvarna LT126 Lawn Tractor
The
Husqvarna LT126 lawn tractor was manufactured from 2009 to 2013. The Husqvarna
LT 126 is powered by 2 engines: a 21.1 cu.in (344 cc) Briggs and Stratton 21R707
Intek 4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine with
a rated power of 11.5 hp (8.5 kW), or 21.1 cu.in (344 cc) Briggs and Stratton
219807 Power Built 4-cycle single cylinder OHV vertical shaft air-cooled
gasoline engine with a rated power of 12.5 hp (9.3 kW).
The Husqvarna LT126 is fitted with a Peerless 206-565 machanical
transmission with 6 forward and 1 reverse gears. Max travel speed
(forward/reverse): 4.5 mph (7.2 km/h) and 1.6 mph (2.6 km/h). The
tractor is equipped with a manual steering system, pneumatic wheels,
13x5.00-6 front tires, and 16x6.50-8 rear tires. The wheelbase is 46.8"
(1190 mm).
The Husqvarna LT 126 is compatible with a 30" mid-mount 1-blade side
discharge mower deck with cutting height of 0.8-3.2" (20-80 mm), 6 cut
positions, manual blade engagement, and mechanical lift system.
| Engine Model |
Briggs and Stratton 21R707 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.1 (344) |
| Cylinder Bore, in (mm) |
3.44 (87.4) |
| Piston Stroke, in (mm) |
2.26 (57.4) |
| Rated Engine Power, hp (kW) |
11.5 (8.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Engine Model |
Briggs and Stratton 219807 Power Built |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.1 (344) |
| Cylinder Bore, in (mm) |
3.44 (87.4) |
| Piston Stroke, in (mm) |
2.27 (57.7) |
| Rated Engine Power, hp (kW) |
12.5 (9.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Aluminum alloy |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Air Cleaner |
Paper element |
| Cooling System |
Forced air |
| Ignition System |
Magnetron Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Manual |
| Number of Batteries |
1 |
| Battery AH |
20 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Peerless 206-565 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
4.5 (7.2) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
13x5.00-6 |
| Rear Tire Size |
16x6.50-8 |
| Wheelbase, in (mm) |
46.8 (1190) |
| Length, in (mm) |
67.7 (1720) |
| Height, in (mm) |
39.8 (1010) |
| Overall Width, in (mm) |
36.2 (920) |
| Weight, lb (kg) |
380 (173) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Number of Blades |
1 |
| Blade Engagement |
Manual |
| Cutting Method |
Side discharge |
| Cutting Width, in (mm) |
30 (770) |
| Cutting Height, in (mm) |
0.8-3.2 (20-80) |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
