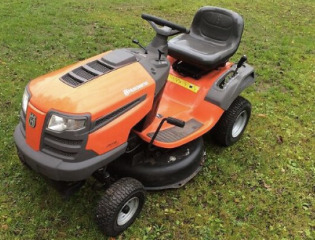

Husqvarna LTH 126 Lawn Tractor
The
Husqvarna LTH 126 lawn tractor was manufactured by AYP built from 2009 to 2013.
The tractor could be equipped with two engine options: 21.1 cu.in (344 cc)
Briggs and Stratton 21R707 Intek 4-cycle single cylinder OHV vertical shaft
air-cooled gasoline engine with a rated power of 11.5 Hp (8.5 kW), or 21.1 cu.in
(344 cc) Briggs and Stratton 219807 Power Built 4-cycle single cylinder OHV
vertical shaft air-cooled gasoline engine with a rated power of 12.5 Hp (9.3
kW).
The Husqvarna LTH126 tractor is fitted with Hydro-Gear T2 belt-driven
hydrostatic transmission with infinite forward and reverse gears. The
maximum forward speed - 5 mph (8 km/h), maximum reverse speed - 2.2 mph
(3.5 km/h).
The Husqvarna LTH 126 lawn mower is equipped with a manual steering,
pneumatic wheels, 13x5.00-6 front tires, and 16x6.50-8 rear tires. The
tractor is compatible with a 30" mid-mount 1-blade mower deck with
cutting height of 0.8-3.2 in (20-80 mm), manual blade engagement, 6 cut
positions, and mechanical lift system with hand operated.
| Engine Model |
Briggs and Stratton 21R707 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.1 (344) |
| Cylinder Bore, in (mm) |
3.44 (87.4) |
| Piston Stroke, in (mm) |
2.26 (57.4) |
| Rated Engine Power, hp (kW) |
11.5 (8.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Engine Model |
Briggs and Stratton 219807 Power Built |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.1 (344) |
| Cylinder Bore, in (mm) |
3.44 (87.4) |
| Piston Stroke, in (mm) |
2.27 (57.7) |
| Rated Engine Power, hp (kW) |
12.5 (9.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Aluminum alloy |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Air Cleaner |
Paper element |
| Cooling System |
Forced air |
| Ignition System |
Magnetron Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Manual |
| Number of Batteries |
1 |
| Battery AH |
20 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Hydro-Gear T2 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.2 (3.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
13x5.00-6 |
| Rear Tire Size |
16x6.50-8 |
| Wheelbase, in (mm) |
46.8 (1190) |
| Length, in (mm) |
67.7 (1720) |
| Height, in (mm) |
39.8 (1010) |
| Overall Width, in (mm) |
36.2 (920) |
| Weight, lb (kg) |
378 (172) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Number of Blades |
1 |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
30 (770) |
| Cutting Height, in (mm) |
0.8-3.2 (20-80) |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
