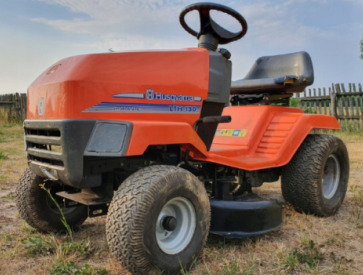

Husqvarna LTH 130 Lawn Tractor
The
Husqvarna LTH 130 lawn tractor was manufactured by AYP built from 1996 to 1999.
The Husqvarna LTH 130 tractor is powered by 26 cubic inches (426 cc) Kohler
Command CV15S 4-cycle vertical shaft 1-cylinder gasoline engine with a rated
power of 13 Hp (9.8 kW).
The engine has a float fixed main jet carburetor, full pressure
lubrication, diaphragm type mechanical pump, and electronic magneto
ignition. The tractor is fitted with a Hydro-Gear belt-driven
hydrostatic transmission with infinite forward and reverse gears.
The maximum forward speed - 5.5 mph (8.8 km/h), maximum reverse speed -
2.4 mph (3.8 km/h). The Husqvarna LTH130 is equipped with a manual
steering system, disc brakes, 15x6.00-6 front tires, and 18x8.50-8 rear
tires. The lawn tractor is compatible with a 42" mid-mount 2-blade side
discharge mower deck with cutting height of 1.5-4.0 in (38-102 mm),
manual blade engagement, 6 cut positions, and mechanical lift system.
| Engine Model |
Kohler Command CV15S |
| Engine Type |
Gasoline, vertical shaft 1-cylinder |
| Number of Cylinder |
Single |
| Piston Displacement, cu.in (cc) |
26 (426) |
| Engine Bore, in (mm) |
3.60 (90.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Engine Power, Hp (kW) |
13.0 (9.8) |
| Maximum Torque, Nm (ft-lb) |
33.2 (24.5) |
| Torque Speed, rpm |
2400 |
| Low Idle Speed, rpm |
1500 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float fixed main jet |
| Fuel Pump |
Diaphragm type mechanical pump |
| Fuel Filter |
In-line |
| Governor |
Centrifugal mechanical flyweight |
| Cooling System |
Air intake |
| Air Cleaner |
Replaceable, high density paper element |
| Lubrication System Type |
Full-pressure |
| Oil Pump Type |
Gerotor |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic magneto |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Ignition Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Oil Capacity, qts (L) |
1.9 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
8 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery CCA |
190 |
| Battery, AH |
25 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Hydro-Gear |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Wheelbase, in (mm) |
47 (1200) |
| Length, in (mm) |
67 (1700) |
| Height, in (mm) |
38 (1020) |
| Overall Width, in (mm) |
48.4 (1225) |
| Ground Clearance, in (mm) |
7 (175) |
| Weight, lb (kg) |
396 (180) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Methods |
Side discharge |
| Cutting Deck Type |
Stamped |
| Cutting Width, in (mm) |
42 (1070) |
| Overall Width, in (mm) |
49 (1245) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut positions |
6 |
| Anti-Scalp Wheels |
2 |
| Lift System |
Mechanical |
