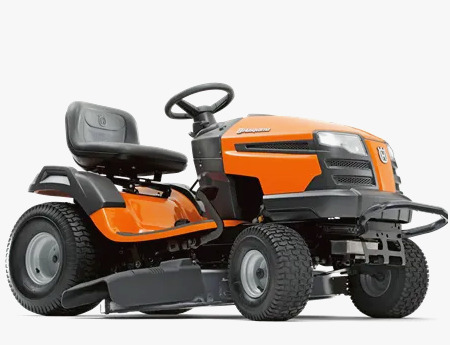

Husqvarna LTH19530 Lawn Tractor
The
Husqvarna LTH19530 lawn tractor was manufactured from 2010 to 2014. The
components of Husqvarna LTH19530 powerline system: a 30.6 cubic inches (501 cc)
Briggs and Stratton 31Q677 four-stroke single cylinder air-cooled gasoline
engine with a max power of 19.5 hp (14.4 kW), and Hydro-Gear T2 belt-driven
hydrostatic transmission with infinite forward and reverse gears.
The engine has a fixed main jet carburetor, full pressure lubrication
system with oil filter, and electronic ignition system. Max. forward
speed - 5.3 mph (8.4 kph), max. reverse speed - 2.9 mph (4.7 kph).
The Husqvarna LTH19530 was equipped with a manual steering system, disc
brakes, 13x5.00-6 front tires, and 16x6.50-8 rear tires. The wheel base
is 46.5" (1180 mm). The lawn tractor is compatible with a 30" mid-mount
1-blade side discharge mower deck with cutting height of 1.5-4.0"
(38-102 mm) and manual lifting system.
| Engine Model |
Briggs and Stratton 31Q677 |
| Engine Type |
4-stroke, single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu in (L) |
30.6 (0.501) |
| Engine Bore, in (mm) |
3.56 (90.0) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
19.5 (14.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1200-3650 |
| Maximum Torque, Nm (lb-ft) |
27.2 (37.1) |
| Torque Speed, rpm |
2400 |
| Compression |
8.5:1 |
| Fuel System |
Carburetor |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 8A |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery CCA |
230 |
| Battery AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Hydro-Gear T2 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.3 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
13x5.00-6 |
| Rear Tire Size |
16x6.50-8 |
| Wheelbase, in (mm) |
46.5 (1180) |
| Length, in (mm) |
67 (1700) |
| Height, in (mm) |
41 (1040) |
| Overall Width (Min), in (mm) |
37.4 (950) |
| Overall Width (Max), in (mm) |
32.3 (820) |
| Turning Radius, in (mm) |
16 (407) |
| Weight, lb (kg) |
363 (165) |
| Mower Deck Type |
Mid-mount |
| Cutting Method |
Side discharge |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Number of Blades |
1 |
| Blade Type |
Hi-performance |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
30 (770) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
