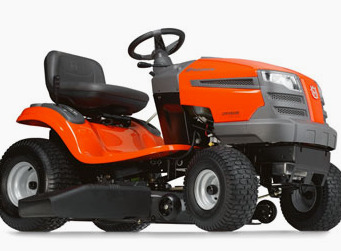

Husqvarna LTH2038 Lawn Tractor
The
Husqvarna LTH2038 is a 2WD lawn tractor. This model was manufactured from 2013
to 2020. The Husqvarna LTH2038 drivetrain system components: Briggs and Stratton
311777 4-cycle vertical shaft single cylinder air-cooled gasoline engine and
Tuff Torq K46 belt-driven hydrostatic transmission with infinite forward and
reverse gears.
A 33 cu.in (540 cc) engine has a cylinder bore of 3.70" (94 mm), piston
stroke of 3.06" (78 mm), and max power of 19.5 hp (14.7 kW). The maximum
travel speed (forward/reverse): 5.2 mph (8.4 km/h) and 2.9 mph (4.7
km/h).
The Husqvarna LTH2038 lawn tractor is equipped with a manual steering,
disc brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The
tractor is compatible with a 38" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, 6 cut
positions, and mechanical lift system with hand operated.
| Engine Model |
Briggs and Stratton 311777 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Engine Configuration |
Vertical shaft |
| Displacement, cu.in (cc) |
33 (540) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
19.5 (14.7) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.75 (1.70) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
8 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
21.53:1 |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1210) |
| Length, in (mm) |
68.2 (1730) |
| Height, in (mm) |
41.4 (1050) |
| Overall Width, in (mm) |
40.7 (1030) |
| Ground Clearance, in (mm) |
6 (155) |
| Weight, lb (kg) |
372 (168) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
38 (960) |
| Overall Width, in (mm) |
49.7 (1260) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Lift System |
Mechanical |
