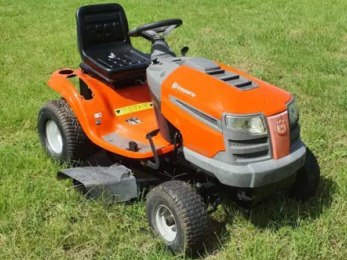

Husqvarna LTH2142DR Lawn Tractor
The
Husqvarna LTH2142DR lawn tractor was manufactured from 2011 to 2014. The
Husqvarna LTH2142DR tractor is powered by 32.9 cubic inches (540 cc) Briggs and
Stratton 33M777 4-cycle vertical-shaft single cylinder air-cooled gasoline
engine with a maximum power of 19.5 Hp (14.5 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, cartridge type air cleaner, and electronic ignition
system. The lawn tractor is fitted with Tuff Torq K46 CR belt-driven
hydrostatic transmission with infinite forward and reverse gears.
The maximum forward speed - 5.3 mph (8.4 km/h), maximum reverse speed -
2.5 mph (4.0 km/h). The Husqvarna LTH2142DR is equipped with a manual
steering system, disc brakes, 15x6.00-6 front tires, and 20x10.00-8 rear
tires. The tractor is compatible with a 42" mid-mount 2-blade side
discharge mower deck with cutting height of 1.5-4.0 in (38-102 mm),
manual blade engagement, 6 cut positions, and mechanical lift system.
Engine Model |
Briggs and Stratton 33M777 |
Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
Cylinder Bore Type |
Cast iron sleeve |
Number of Cylinders |
1 |
Displacement, cu.in (cc) |
32.9 (540) |
Engine Bore, in (mm) |
3.70 (94.0) |
Engine Stroke, in (mm) |
3.06 (77.8) |
Maximum Engine Power, hp (kW) |
19.5 (14.7) |
Rated Engine Speed, rpm |
3600 |
Idle Speed, rpm |
1400-1600 |
Fuel System |
Carburetor |
Governor Type |
Mechanical |
Lubrication System |
Full pressure with oil filter |
Spark Plug |
Champion RC12YC |
Spark Plug Gap, in (mm) |
0.030 (0.76) |
Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
Air Filter |
Cartridge air cleaner |
Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
Oil Capacity, qts (L) |
1.5 (1.4) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator, 9A |
Starter Type |
Electric |
Battery Voltage, Volts |
12 |
Battery CCA |
230 |
Battery AH |
28 |
Electric Ground |
Negative |
PTO Operational Type |
Independent |
PTO Clutch |
Mechanical |
PTO Speed, rpm |
3600 |
Transmission Model |
Tuff Torq K46 CR |
Transmission Type |
Belt-driven hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Drive Train |
Transaxle with foot-controlled variable speed drive |
Axle Shaft Size, in (mm) |
0.75 (19.1) |
Maximum Forward Speed, mph (kph) |
5.3 (8.4) |
Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front steer |
Steering System |
Manual |
Brakes Type |
Disc |
Front Tire Size |
15x6.00-6 |
Rear Tire Size |
20x10.00-8 |
Wheelbase, in (mm) |
48 (1220) |
Length, in (mm) |
69.3 (1760) |
Height, in (mm) |
41.3 (1050) |
Overall Width (Min), in (mm) |
43.3 (1100) |
Overall Width (Max), in (mm) |
49.2 (1250) |
Weight, lb (kg) |
418 (190) |
Mower Deck Type |
Mid-mount |
Number of Blades |
2 |
Blade Engagement |
Manual |
Cutting Methods |
Side discharge |
Cutting Deck Type |
Stamped |
Cutting Width, in (mm) |
42 (1070) |
Overall Width, in (mm) |
49 (1245) |
Cutting Height, in (mm) |
1.5-4.0 (38-102) |
Cut positions |
6 |
Anti-Scalp Wheels |
2 |
Lift System |
Mechanical |
