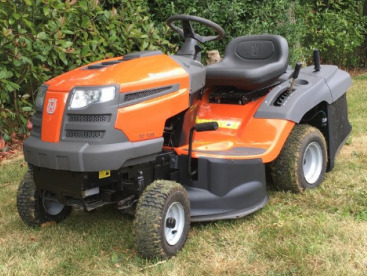

Husqvarna TC 130 Lawn Tractor

The Husqvarna TC 130 lawn tractor was manufactured from 2013 to 2020. The Husqvarna TC130 tractor is powered by 21.4 cubic inches (344 cc) Briggs and Stratton 4-cycle vertical shaft single cylinder air-cooled gasoline engine with a maximum power of 11.5 Hp (8.5 kW).

The engine has a fixed main jet carburetor, full pressure lubrication with oil filter, and cartridge type air cleaner. The tractor is fitted with Hydro-Gear belt-driven hydrostatic transmission with infinite forward and reverse gears. The max forward speed - 4.3 mph (6.8 km/h), max reverse speed - 2.2 mph (23.5 km/h).

The Husqvarna TC 130 is equipped with a manual steering system, disc brakes, 15x6.00-6 front tires, and 18x8.50-8 rear tires. The lawn tractor is compatible with a 30" mid-mount 2-blade mower deck with cutting height of 1.5-4.0 in (38-101 mm), 6 cut positions, central cutting height adjustment with spring-assisted, and mechanical lift system.

Engine
Engine Model Briggs and Stratton
Engine Type 4-cycle single cylinder air-cooled gasoline
Number of Cylinders 1
Engine Configuration Vertical shaft
Displacement, cu.in (cc) 21.4 (344)
Engine Bore, in (mm) 3.44 (87.3)
Engine Stroke, in (mm) 2.26 (57.5)
Maximum Engine Power, hp (kW) 11.5 (8.5)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1400-1600
Fuel System Carburetor
Lubrication System Full pressure with oil filter
Spark Plug Champion RC12YC
Spark Plug Gap, in (mm) 0.030 (0.76)
Armature Air Gap, in (mm) 0.010-0.014 (0.25-0.36)
Air Filter Cartridge air cleaner
Intake Valve Clearance, in (mm) 0.003-0.005 (0.08-0.13)
Exhaust Valve Clearance, in (mm) 0.005-0.007 (0.13-0.18)
Fuel Tank Capacity, gal (L) 1.5 (5.7)
Oil Capacity, qts (L) 1.5 (1.4)

Electrical System
Electrical System Rating, Volts 12
Charging System Rating, Amps 8
Starter Type Electric
Number of Batteries 1
Battery Rating 12V, 230 CCA
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Mechanical
PTO Speed, rpm 3600

Transmission
Transmission Model Hydro-Gear
Transmission Type HBelt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Maximum Forward Speed, mph (kph) 4.3 (6.8)
Maximum Reverse Speed, mph (kph) 2.2 (3.5)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Disc
Front Tire Size 15x6.00-6
Rear Tire Size 18x8.50-8

Dimensions and Weight
Wheelbase, in (mm) 48 (1215)
Length (with bagger), in (mm) 88 (2220)
Height, in (mm) 40 (1020)
Overall Width, in (mm) 40 (1020)
Ground Clearance, in (mm) 6.5 (165)
Weight, lb (kg) 408 (185)

30" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 2
Cutting Deck Type Stamped
Cutting Width, in (mm) 30 (760)
Overall Width, in (mm) 48 (1220)
Cutting Height, in (mm) 1.5-4.0 (38-101)
Cutting Height Adjustment Central, spring-assisted
Cut Positions 6
Lift System Mechanical
