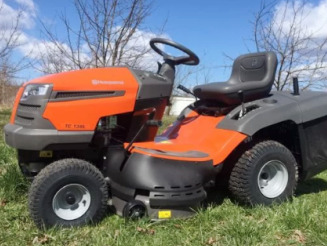

Husqvarna TC 138L Lawn Tractor

The Husqvarna TC 138L lawn tractor was manufactured between 2019 and 2022. The Husqvarna TC138L driveline consists of Loncin LC1P92F-1 4-cycle vertical-shaft single cylinder air-cooled gasoline engine and Tuff Torq K46 DC belt-driven hydrostatic transmission with infinite forward and reverse gears.

A 27.6 cubic inches (452 cc) engine has a cylinder bore of 3.62" (92 mm), piston stroke of 2.68" (68 mm), and maximum power of 16 hp (11.9 kW). The fuel system has a fixed main jet carburetor and pulse fuel pump. The maximum forward speed - 5 mph (8 kph), maximum reverse speed - 2.2 mph (3.5 kph).

The Husqvarna TC 138L lawn tractor is equipped with a manual steering system, pneumatic wheels, 15x6.00-6 front tires, and 18x8.50-8 rear tires. Compatible attachments for the tractor: 38" mid-mount 2-blade side discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, six cut positions, and mechanical lift system with hand operated.

Engine
Engine Model Loncin LC1P92F-1
Engine Type 4-cycle vertical-shaft single cylinder air-cooled gasoline
Number of Cylinders 1
Displacement, cu.in (cc) 27.6 (452)
Engine Bore, in (mm) 3.62 (92.0)
Engine Stroke, in (mm) 2.68 (68.0)
Maximum Engine Power, hp (kW) 16.0 (11.9)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1300-1400
Maximum Torque, Nm (ft-lbs) 29.0 (21.5)
Torque Speed, rpm 2600
Fuel System Carburetor
Governor Type Mechanical
Lubrication System Full pressure with oil filter
Spark Plug Champion RC12YC
Spark Plug Gap, in (mm) 0.030 (0.76)
Fuel Tank Capacity, gal (L) 1.5 (5.7)
Oil Capacity, qts (L) 1.3 (1.2)

Electrical System
Electrical System Rating, Volts 12
Charging System Rating 12A
Starter Type Electric
Number of Batteries 1
Battery AH 14
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Mechanical
PTO Speed, rpm 3000

Transmission
Transmission Model Tuff Torq K46 DC
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Drive Train Transaxle with foot-controlled variable speed drive
Axle Shaft Size, in (mm) 0.75 (19.1)
Maximum Forward Speed, mph (kph) 5.0 (8.0)
Maximum Reverse Speed, mph (kph) 2.2 (3.5)

Wheels and Tires
Drive Wheels 2WD 4x2
Front Axle Cast-iron
Steering Configuration Front steer
Steering System Manual
Tire Type Pneumatic wheels
Front Tire Size 15x6.00-6
Rear Tire Size 18x8.50-8

Dimensions and Weight
Wheelbase, in (mm) 46.8 (1190)
Length, in (mm) 70 (1780)
Height, in (mm) 41.8 (1060)
Overall Width, in (mm) 40.5 (1030)
Turning Radius, in (mm) 16 (407)
Weight, lb (kg) 475 (216)

38" Mower Deck
Mower Deck Type Mid-mount
Mower Deck Construction Stamped
Mower Deck Material Steel
Cutting Methods Side discharge
Number of Blades 2
Blade Engagement Manual
Cutting Width, in (mm) 38 (970)
Cutting Height, in (mm) 1.5-4.0 (38-101)
Spindle Material Aluminum
Cut Positions 6
Deck Drive Belt
Lift System Mechanical, hand operated
