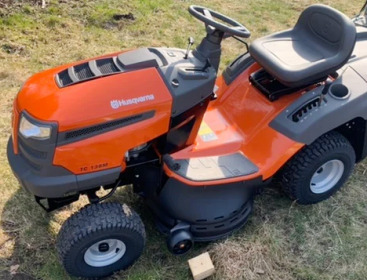

Husqvarna TC 138 M Lawn Tractor
The
Husqvarna TC138M lawn tractor was manufactured from 2018 to 2022. The Husqvarna
TC 138 M tractor can be equipped with the following models of gasoline engines:
25 cubic inches (725 cc) Briggs and Stratton 21R707 Intek 4-cycle single
cylinder OHV vertical shaft air-cooled engine with a rated power of 10.5 Hp (7.8
kW), and 21.5 cubic inches (352 cc) Loncin LC1P85FA 4-cycle vertical-shaft
single cylinder air-cooled engine with a max power of 13 Hp (9.6 kW).
The tractor is fitted with a Peerless 206-578 gear transmission with 6
forward and 1 reverse gears. The maximum forward speed - 4.7 mph (7.5
km/h), maximum reverse speed - 1.4 mph (2.3 km/h). The Husqvarna TC 138
M is equipped with a manual steering system, pneumatic wheels, 15x6.00-6
front tires, and 18x8.50-8 rear tires.
The tractor is compatible with a 38" mid-mount 2-blade side discharge
mower deck with cutting height of 1.5-4.0 in (38-101 mm), manual blade
engagement, six cut positions, and mechanical lift system with hand
operated.
| Engine Model |
Briggs and Stratton 21R707 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.1 (344) |
| Cylinder Bore, in (mm) |
3.44 (87.4) |
| Piston Stroke, in (mm) |
2.26 (57.4) |
| Rated Engine Power, hp (kW) |
10.5 (7.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Oil slinger |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Engine Model |
Loncin LC1P85FA |
| Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
21.5 (352) |
| Engine Bore, in (mm) |
3.35 (85.0) |
| Engine Stroke, in (mm) |
2.44 (62.0) |
| Maximum Engine Power, hp (kW) |
13.0 (9.6) |
| Net Engine Power, hp (kW) |
9.8 (7.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1300-1400 |
| Maximum Torque, Nm (ft-lbs) |
21.5 (15.9) |
| Torque Speed, rpm |
2400 |
| Fuel System |
Carburetor |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Cooling System |
Forced air cooling |
| Ignition System |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.1 (1.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Peerless 206-578 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
4.7 (7.5) |
| Maximum Reverse Speed, mph (kph) |
1.4 (2.3) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Cast-iron |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Wheelbase, in (mm) |
46.8 (1190) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
41.5 (1050) |
| Overall Width, in (mm) |
40.1 (1020) |
| Turning Radius, in (mm) |
16 (407) |
| Weight, lb (kg) |
440 (200) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
38 (970) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Spindle Material |
Aluminum |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
