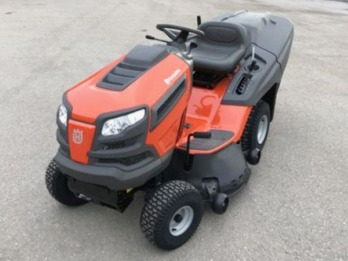

Husqvarna TC 142T Lawn Tractor
The
Husqvarna TC 142T is a 2-wheel drive lawn tractor. This model was manufactured
from 2016 to 2020. The Husqvarna TC142T drivetrain system components: Briggs and
Stratton 40N777 Intek 4-cycle V-twin cylinder OHV air-cooled gasoline engine and
Tuff Torq K46 DF belt-driven hydrostatic transmission with infinite forward and
reverse gears.
A 40.1 cu.in (656 cc) engine has a cylinder bore of 2.97" (75 mm),
piston stroke of 2.89" (73 mm), and rated power of 20 hp (14.8 kW). The
maximum travel speed (forward/reverse): 5.2 mph (8.4 km/h) and 2.9 mph
(4.6 km/h).
The Husqvarna TC 142T lawn mower is equipped with a manual steering
system, pneumatic wheels, 15x6.00-6 front tires, and 18x8.50-8 rear
tires. The tractor is compatible with a 42" mid-mount 2-blade side
discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm),
central cutting height adjustment with spring-assisted, two anti-scalp
wheels, and mechanical lifting system.
| Engine Model |
Briggs and Stratton 40N777 Intek |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.1 (656) |
| Cylinder Bore, in (mm) |
2.97 (75.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump Type |
Integral |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with spin-on oil filter |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Magnetron, Electronic |
| Spark Plug Type |
Champion QC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
16 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, CCA |
230 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 DF |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
40 (1020) |
| Overall Width, in (mm) |
44 (1120) |
| Turning Radius, in (mm) |
16 (407) |
| Weight, lb (kg) |
537 (244) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
Steel |
| Cutting Methods |
Collect, mulch, side discharge |
| Number of Blades |
2 |
| Blade Type |
High Performance |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
42 (1070) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cutting Height Adjustment |
Central, spring-assisted |
| Cut Positions |
6 |
| Anti-Scalp Wheels |
2 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
